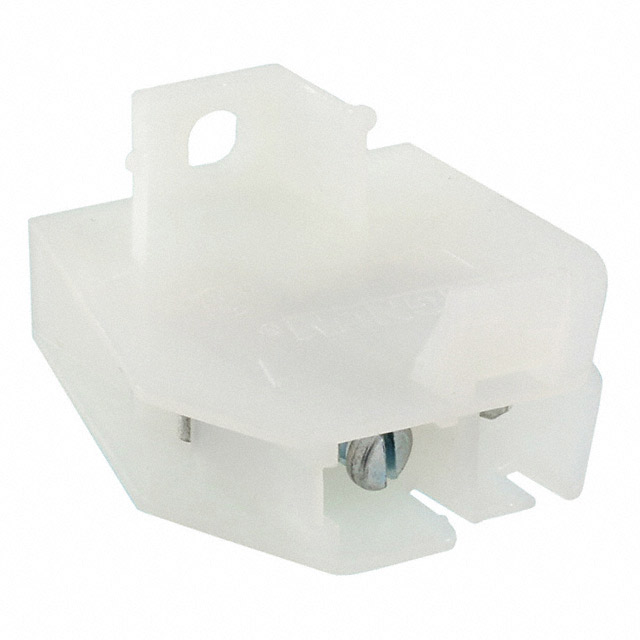

BNQ21-WH

Active

Eaton - Bussmann Electrical Division

TERM BLOCK QCK CONN ST BASE MNT

Search across all available documentation for this part.

Active

Eaton - Bussmann Electrical Division

TERM BLOCK QCK CONN ST BASE MNT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BNQ21-WH	- Series

Actuator Marking	-	No Marking
Actuator Type	-	Concave (Standard V) - Illuminated
Circuit	-	SPST
Color - Actuator/Cap	-	Red
Convert From (Adapter End)	Screw Connection, Terminal Blocks	Screw Connection, Terminal Blocks
Convert From (Adapter End)	1	1
Convert To (Adapter End)	1 Row	1 Row
Convert To (Adapter End)	Quick Connects	Quick Connects
Current Rating (Amps)	-	16 A
Mounting Type	Board Mounted	Panel Mount, Snap-In, Board Mounted
Switch Function	-	On-Off
Voltage Rating - DC	-	12 V
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	8 AWG	8 AWG

SWITCH ROCKER SPST 16A 12V

Part	Current Rating (Amps)	Circuit	Voltage Rating - DC	Color - Actuator/Cap	Actuator Marking	Mounting Type	Actuator Type	Switch Function	Convert From (Adapter End)	Convert From (Adapter End)	Convert To (Adapter End)	Convert To (Adapter End)	Wire Gauge [Min]	Wire Gauge [Max]
Eaton - Bussmann Electrical Division BP/SRR	16 A	SPST	12 V	Red	No Marking	Panel Mount, Snap-In	Concave (Standard V) - Illuminated	On-Off
Eaton - Bussmann Electrical Division BNQ21-WH						Board Mounted			Screw Connection, Terminal Blocks	1	1 Row	Quick Connects	8 AWG	22 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 6.19

General part information

Adapter Terminal Blocks, Screw Connection, 1 Pos, 1 Row To Quick Connects, 1 Pos
