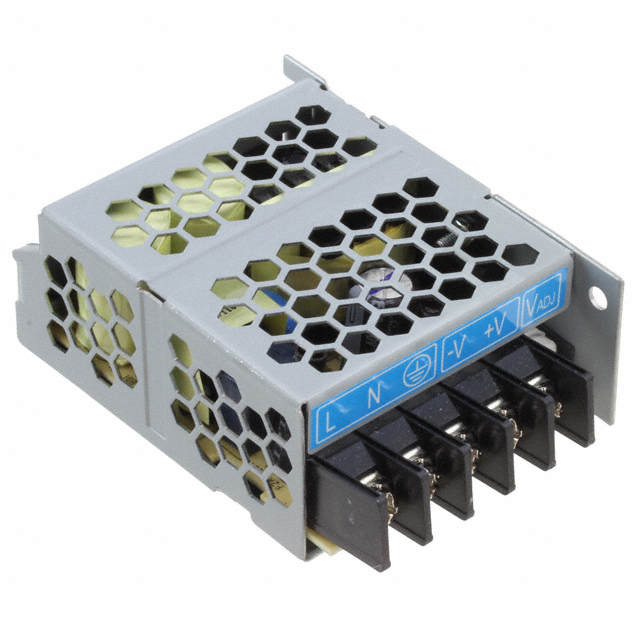

PMC-05V015W1AA

Active

Delta Electronics

AC/DC CONVERTER 5V 15W

Search across all available documentation for this part.

Active

Delta Electronics

AC/DC CONVERTER 5V 15W

Technical Specifications

Parameters and characteristics for this part

Specification	PMC-05V015W1AA

Applications	ITE (Commercial)
Approval Agency	EN, UL, SIQ, EAC, CE, CB Scheme
Current - Output 1	3 A
Efficiency	80 %
Features	Universal Input, Adjustable Output, DC Input Capable
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	15 W
Size / Dimension [x]	77 mm
Size / Dimension [x]	3.03 in
Size / Dimension [y]	2.01 in
Size / Dimension [y]	51 mm
Size / Dimension [z]	28 mm
Size / Dimension [z]	1.1 in
Standard Number	60950-1, 61000-3-3, 55024, 55032, 50581, 61000-3-2
Type	Enclosed
Voltage - Isolation	3000 V
Voltage - Output 1	5 V

Part	Efficiency	Type	Mounting Type	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Features	Current - Output 1	Number of Outputs	Applications	Approval Agency	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Standard Number
Delta Electronics PMC-05V035W1AA	79 %	Enclosed	Chassis Mount	3000 V	38 mm	98 mm	3.82 in	1.5 "	97 mm	3.86 in	Adjustable Output DC Input Capable Universal Input	7 A	1	ITE (Commercial)	CB CCC CE cURus SIQ	35 W	-20 °C	70 °C	5 V
Delta Electronics PMC-05V015W1AA	80 %	Enclosed	Chassis Mount	3000 V	28 mm	77 mm	2.01 in	1.1 in	51 mm	3.03 in	Adjustable Output DC Input Capable Universal Input	3 A	1	ITE (Commercial)	CB Scheme CE EAC EN SIQ UL	15 W	-20 °C	70 °C	5 V	50581 55024 55032 60950-1 61000-3-2 61000-3-3
