AXT360114

Active

Panasonic Electric Works

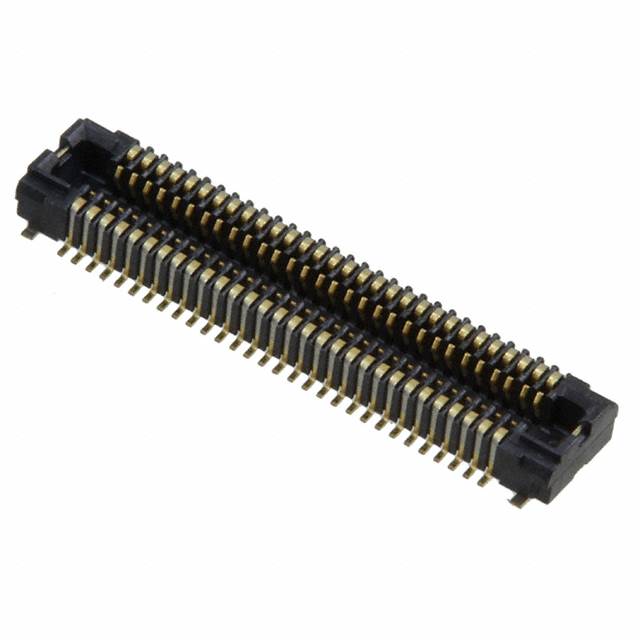

CONN SOCKET 60POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN SOCKET 60POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXT360114

Connector Type	Socket, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention, Board Guide
Height Above Board [z]	0.057 in
Height Above Board [z]	1.45 mm
Mated Stacking Heights	1.5 mm
Mounting Type	Surface Mount
Number of Positions	60
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Contact Finish	Mated Stacking Heights [z]	Mounting Type	Features	Number of Rows	Number of Positions	Pitch [x]	Pitch [x]	Connector Type	Height Above Board [z]	Height Above Board [z]	Mated Stacking Heights
Panasonic Electric Works AXT360224	Gold	2.5 mm 3 mm	Surface Mount	Solder Retention	2	60	0.016 in	0.4 mm	Outer Shroud Contacts Socket	2.45 mm	0.096 in
Panasonic Electric Works AXT360114	Gold		Surface Mount	Board Guide Solder Retention	2	60	0.016 in	0.4 mm	Outer Shroud Contacts Socket	1.45 mm	0.057 in	1.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 9.32

General part information

60 Position Connector Socket, Outer Shroud Contacts Surface Mount Gold
