General part information

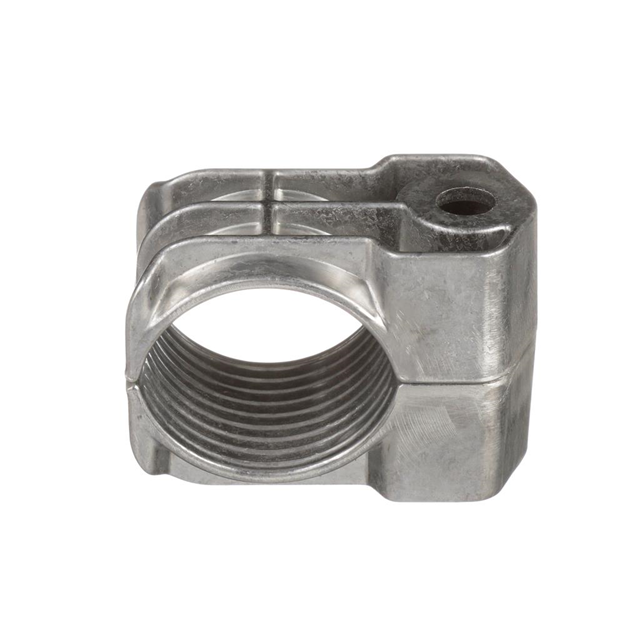

Cable Clamp, Cleat Natural
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | CCAL1H3846-X | CCAL1H Series |
|---|---|---|
| Color | Natural | Natural |
| Height | - | 1.26 in |
| Height | - | 32 mm |
| Height [z] | 2.01 in | 0.91 - 2.36 in |
| Height [z] | 51.05 mm | 23.11 - 59.94 mm |
| Length | 2.99 " | 1.57 - 3.27 in |
| Length | 75.95 mm | 39.88 - 83.06 mm |
| Length | - | 2.44 in |
| Length | - | 61.98 mm |
| Material | Aluminum | Aluminum |
| Type | Clamp, Cleat | Clamp, Cleat |
| Type Attributes | Adjustable | Adjustable |
| Width [x] | 41.91 mm | 40.89 - 41.91 mm |
| Width [x] | 1.65 in | 1.61 - 1.65 in |
CABLE MOUNTING & ACCESSORIES CABLE CLEAT, ALUMINUM, 1-HOLE CONFIGURAT
| Part | Height [z] | Height [z] | Type | Material | Width [x] | Width [x] | Type Attributes | Color | Length | Length | Length [x] | Length [x] | Height [diameter] | Height [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Panduit Corp CCAL1H2327-X | 36.07 mm | 1.42 in | Clamp, Cleat | Aluminum | 1.61 in | 40.89 mm | Adjustable | Natural | ||||||
Panduit Corp CCAL1H3238-X | 44.96 mm | 1.77 in | Clamp, Cleat | Aluminum | 1.65 in | 41.91 mm | Adjustable | Natural | 2.68 in | 68.07 mm | ||||
Panduit Corp CCAL1H4651-X | 59.94 mm | 2.36 in | Clamp, Cleat | Aluminum | 1.65 in | 41.91 mm | Adjustable | Natural | 3.27 in | 83.06 mm | ||||
Panduit Corp CCAL1H3846-X | 51.05 mm | 2.01 in | Clamp, Cleat | Aluminum | 1.65 in | 41.91 mm | Adjustable | Natural | 2.99 " | 75.95 mm | ||||
Panduit Corp CCAL1H1013-X | 23.11 mm | 0.91 in | Clamp, Cleat | Aluminum | 1.61 in | 40.89 mm | Adjustable | Natural | 1.57 in | 39.88 mm | ||||
Panduit Corp CCAL1H1316-X | 25.91 mm | 1.02 in | Clamp, Cleat | Aluminum | 1.61 in | 40.89 mm | Adjustable | Natural | 1.73 in | 43.94 mm | ||||
Panduit Corp CCAL1H2732-X | Clamp, Cleat | Aluminum | 1.61 in | 40.89 mm | Adjustable | Natural | 2.44 in | 61.98 mm | ||||||
Panduit Corp CCAL1H1619-X | 28.96 mm | 1.14 in | Clamp, Cleat | Aluminum | 1.61 in | 40.89 mm | Adjustable | Natural | 1.89 " | 48 mm | ||||
Panduit Corp CCAL1H1923-X | Clamp, Cleat | Aluminum | 1.61 in | 40.89 mm | Adjustable | Natural | 2.05 in | 52.07 mm | 1.26 in | 32 mm |
