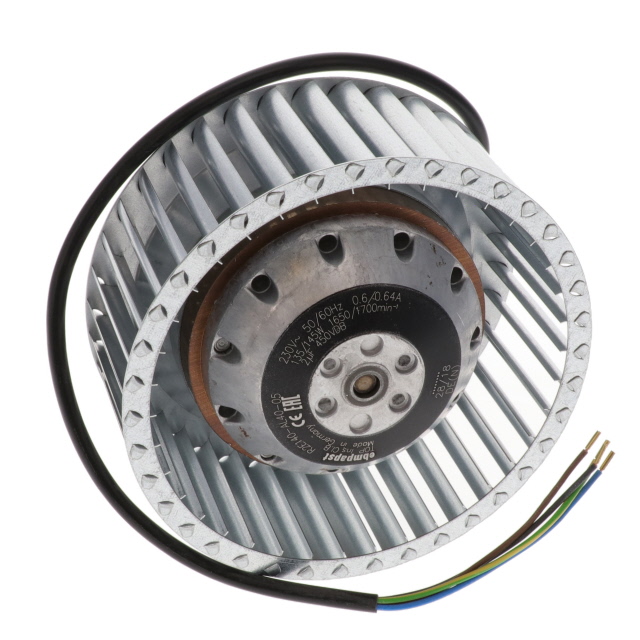

R2E140-AL40-05

Active

ebm-papst Inc.

AC BACKWARD-CURVED MOTORIZED IMPELLER

Search across all available documentation for this part.

Active

ebm-papst Inc.

AC BACKWARD-CURVED MOTORIZED IMPELLER

Technical Specifications

Parameters and characteristics for this part

Specification	R2E140-AL40-05

Approval Agency	CCC, EAC, CE
Bearing Type	Ball
Current Rating (Amps)	0.64 A
Fan Type	Motorized Impellers
Features	Capacitor, Thermal Overload Protector (TOP)
Ingress Protection	IP44
Material - Blade	Steel
Operating Temperature [Max]	40 °C
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-25 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	145 W
RPM	1700 RPM
Size / Dimension [diameter]	140 mm
Static Pressure	100 Pa
Static Pressure	0.401 in H2O
Termination	4 Wire Leads with Splice Terminals
Voltage - Rated	230 VAC
Weight	2.4 lbs
Weight	1.1 kg
Width [y]	72 mm

Blowers & Centrifugal Fans AC Backward-Curved Motorized Impeller, 140mm, 115VAC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Weight	Weight	Power (Watts)	Bearing Type	Fan Type	Approval Agency	Size / Dimension [diameter]	Termination	Width [y]	Features	Ingress Protection	Material - Blade	Current Rating (Amps)	RPM	Voltage - Rated	Static Pressure	Static Pressure	Operating Temperature	Operating Temperature
ebm-papst Inc. R2E140-AL40-05	-25 °C	40 °C	40 °C	-25 °C	2.4 lbs	1.1 kg	145 W	Ball	Motorized Impellers	CCC CE EAC	140 mm	4 Wire Leads with Splice Terminals	72 mm	Capacitor Thermal Overload Protector (TOP)	IP44	Steel	0.64 A	1700 RPM	230 VAC	100 Pa	0.401 in H2O
ebm-papst Inc. R2E140-AI31-30					2.4 lbs	1.1 kg	195 W	Ball	Motorized Impellers	CSA UL	140 mm	4 Wire Leads with Splice Terminals	72 mm	Capacitor Thermal Overload Protector (TOP)	IP44	Steel	1.64 A	2200 RPM	115 VAC			70 °C	70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Blowers & Centrifugal Fans AC Backward-Curved Motorized Impeller, 140mm, 115VAC
