6280-4PG-321

Active

Conxall/Switchcraft

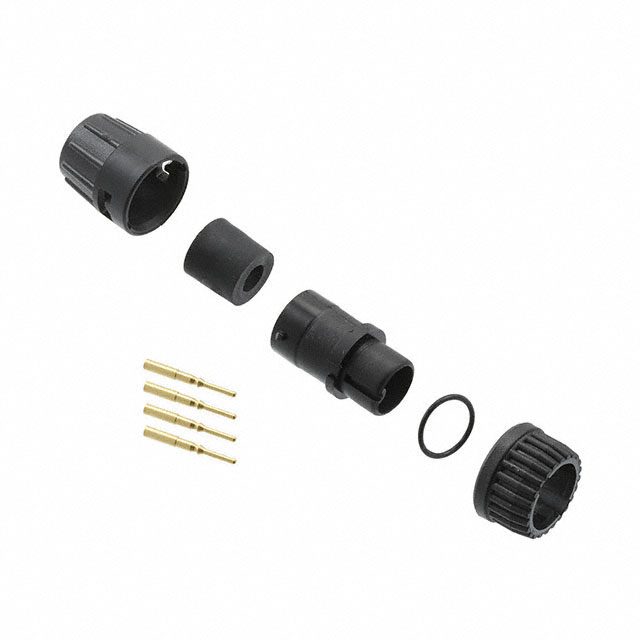

CONN PLUG MALE 4POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6280-4PG-321

Active

Conxall/Switchcraft

CONN PLUG MALE 4POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6280-4PG-321	6280-4PG Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	5.33 - 6.35 mm
Cable Opening	-	2.29 mm
Cable Opening	-	0.09 - 0.14 in
Cable Opening	-	3.56 mm
Cable Opening [Max] [diameter]	5.84 mm	5.84 mm
Cable Opening [Max] [diameter]	0.23 in	0.21 - 0.25 in
Cable Opening [Min] [diameter]	5.33 mm	4.83 - 5.59 mm
Cable Opening [Min] [diameter]	0.21 in	0.19 - 0.22 in
Color	Black	Black
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	4	4
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Voltage Rating	600 V	600 V

6280-4PG Series

CONN PLUG MALE 4POS GOLD CRIMP

Part	Backshell Material, Plating	Termination	Ingress Protection	Contact Finish - Mating	Orientation	Fastening Type	Voltage Rating	Primary Material	Features	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Shielding	Applications	Mounting Type	Color	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Number of Positions	Connector Type	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [Max] [diameter]
Conxall/Switchcraft 6280-4PG-519	Nylon, Polyamide (PA)	Crimp	Weathertight	Gold	Keyed	Bayonet Lock	600 V	Plastic	Backshell	Varies by Wire Gauge	-40 °C	115 °C	Brass	Unshielded	Automotive, Communication Systems, Instrumentation	Free Hanging (In-Line)	Black	0.21 in	0.19 in	4.83 mm	5.33 mm	4	Male Pins, Plug
Conxall/Switchcraft 6280-4PG-311	Nylon, Polyamide (PA)	Crimp	Weathertight	Gold	Keyed	Bayonet Lock	600 V	Plastic	Backshell	Varies by Wire Gauge	-40 °C	115 °C	Brass	Unshielded	Automotive, Communication Systems, Instrumentation	Free Hanging (In-Line)	Black					4	Male Pins, Plug	2.29 mm	0.09 in, 0.14 in	3.56 mm
Conxall/Switchcraft 6280-4PG-522	Nylon, Polyamide (PA)	Crimp	Weathertight	Gold	Keyed	Bayonet Lock	600 V	Plastic	Backshell	Varies by Wire Gauge	-40 °C	115 °C	Brass	Unshielded	Automotive, Communication Systems, Instrumentation	Free Hanging (In-Line)	Black	0.25 in	0.22 in	5.59 mm	6.35 mm	4	Male Pins, Plug
Conxall/Switchcraft 6280-4PG-321	Nylon, Polyamide (PA)	Crimp	Weathertight	Gold	Keyed	Bayonet Lock	600 V	Plastic	Backshell	Varies by Wire Gauge	-40 °C	115 °C	Brass	Unshielded	Automotive, Communication Systems, Instrumentation	Free Hanging (In-Line)	Black	0.23 in	0.21 in	5.33 mm		4	Male Pins, Plug				5.84 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.34
		10	$ 7.51
		100	$ 6.71
		1000	$ 4.97

Description

General part information

6280-4PG Series

4 Position Circular Connector Plug, Male Pins Crimp

Documents

Technical documentation and resources
