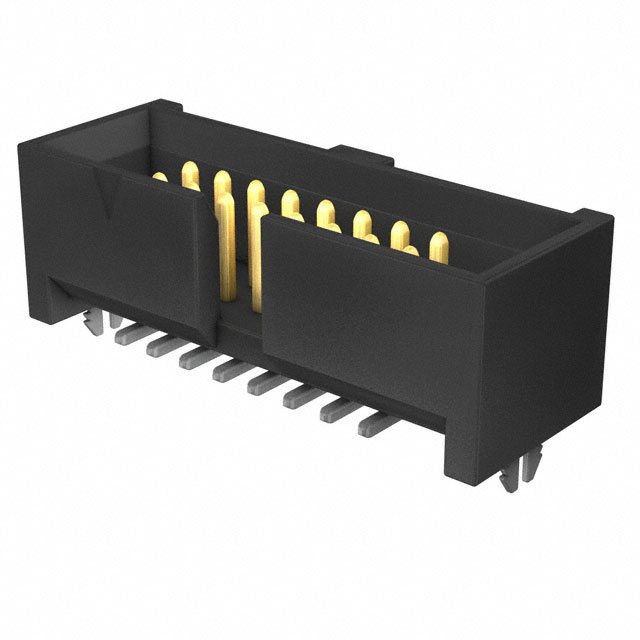

SHF-108-01-L-D-SM-LC-K-TR

Active

Samtec Inc.

CONN SHROUDED HEADER (4 SIDES) HDR 16 POS 1.27MM SOLDER ST TOP ENTRY SMD T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet SHF-102-01-L-D-SM Datasheet 02 +1

SHF-108-01-L-D-SM-LC-K-TR

Active

Samtec Inc.

CONN SHROUDED HEADER (4 SIDES) HDR 16 POS 1.27MM SOLDER ST TOP ENTRY SMD T/R

Deep-Dive with AI

DocumentsDatasheet SHF-102-01-L-D-SM Datasheet 02 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SHF-108-01-L-D-SM-LC-K-TR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Pick and Place, Board Lock, Keying Slot
Insulation Color	Black
Insulation Height	5.33 mm
Insulation Height	0.21 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

SHF-117 Series

Headers & Wire Housings Shrouded Terminal Strip, 0.050" pitch

Part	Contact Finish - Post	Contact Finish - Mating	Contact Material	Contact Length - Mating	Contact Length - Mating	Mounting Type	Connector Type	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Current Rating (Amps)	Insulation Color	Contact Type	Shrouding	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating	Row Spacing - Mating	Insulation Height	Insulation Height	Number of Positions	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Fastening Type	Features	Termination	Insulation Material	Number of Rows	Contact Length - Post [x]	Contact Length - Post	Number of Positions	Contact Length - Post
Samtec Inc. SHF-117-01-F-D-SM-LC	Tin	Gold	Phosphor Bronze	3.05 mm	0.12 in	Surface Mount	Header	Board to Cable/Wire	3 µin	0.076 µm	Square	3 A	Black	Male Pin	Shrouded - 4 Wall	UL94 V-0	-55 °C	125 °C	0.05 in	1.27 mm	5.33 mm	0.21 in	34	0.05 in	1.27 mm	All	Push-Pull	Board Lock Keying Slot	Solder	Liquid Crystal Polymer (LCP)	2
Samtec Inc. SHF-117-01-S-D-SM-K-TR	Tin	Gold	Phosphor Bronze	3.05 mm	0.12 in	Surface Mount	Header	Board to Cable/Wire			Square	3 A	Black	Male Pin	Shrouded - 4 Wall	UL94 V-0	-55 °C	125 °C	0.05 in	1.27 mm	5.33 mm	0.21 in	34	0.05 in	1.27 mm	All	Push-Pull	Keying Slot Pick and Place	Solder	Liquid Crystal Polymer (LCP)	2
Samtec Inc. SHF-108-01-S-D-TH	Tin	Gold	Phosphor Bronze	3.05 mm	0.12 in	Through Hole	Header	Board to Cable/Wire			Square	3 A	Black	Male Pin	Shrouded - 4 Wall	UL94 V-0	-55 °C	125 °C	0.05 in	1.27 mm	5.33 mm	0.21 in		0.05 in	1.27 mm	All	Push-Pull	Keying Slot	Solder	Liquid Crystal Polymer (LCP)	2	0.075 in	1.91 mm	16
Samtec Inc. SHF-117-01-L-D-SM-TR	Tin	Gold	Phosphor Bronze	3.05 mm	0.12 in	Surface Mount	Header	Board to Cable/Wire	10 çin	0.25 çm	Square	3 A	Black	Male Pin	Shrouded - 4 Wall	UL94 V-0	-55 °C	125 °C	0.05 in	1.27 mm	5.33 mm	0.21 in	34	0.05 in	1.27 mm	All	Push-Pull	Keying Slot	Solder	Liquid Crystal Polymer (LCP)	2
Samtec Inc. SHF-108-01-S-D-SM	Tin	Gold	Phosphor Bronze	3.05 mm	0.12 in	Surface Mount	Header	Board to Cable/Wire			Square	3 A	Black	Male Pin	Shrouded - 4 Wall	UL94 V-0	-55 °C	125 °C	0.05 in	1.27 mm	5.33 mm	0.21 in		0.05 in	1.27 mm	All	Push-Pull	Keying Slot	Solder	Liquid Crystal Polymer (LCP)	2			16
Samtec Inc. SHF-117-01-L-D-TH-LC	Tin	Gold	Phosphor Bronze	3.05 mm	0.12 in	Through Hole	Header	Board to Cable/Wire	10 çin	0.25 çm	Square	3 A	Black	Male Pin	Shrouded - 4 Wall	UL94 V-0	-55 °C	125 °C	0.05 in	1.27 mm	5.33 mm	0.21 in	34	0.05 in	1.27 mm	All	Push-Pull	Board Lock Keying Slot	Solder	Liquid Crystal Polymer (LCP)	2	0.075 in	1.91 mm
Samtec Inc. SHF-108-01-L-D-SM-LC-K-TR	Tin	Gold	Phosphor Bronze	3.05 mm	0.12 in	Surface Mount	Header	Board to Cable/Wire	10 çin	0.25 çm	Square	3 A	Black	Male Pin	Shrouded - 4 Wall	UL94 V-0	-55 °C	125 °C	0.05 in	1.27 mm	5.33 mm	0.21 in		0.05 in	1.27 mm	All	Push-Pull	Board Lock Keying Slot Pick and Place	Solder	Liquid Crystal Polymer (LCP)	2			16
Samtec Inc. SHF-117-01-L-D-RA-TR	Tin	Gold	Phosphor Bronze	3.05 mm	0.12 in	Through Hole Right Angle	Header	Board to Cable/Wire	10 çin	0.25 çm	Square	3 A	Black	Male Pin	Shrouded - 4 Wall	UL94 V-0	-55 °C	125 °C	0.05 in	1.27 mm	5.6 mm	0.22 in	34	0.05 in	1.27 mm	All	Push-Pull	Keying Slot	Solder	Liquid Crystal Polymer (LCP)	2		2.16 mm		0.085 in
Samtec Inc. SHF-117-01-L-D-SM-LC-K-TR	Tin	Gold	Phosphor Bronze	3.05 mm	0.12 in	Surface Mount	Header	Board to Cable/Wire	10 çin	0.25 çm	Square	3 A	Black	Male Pin	Shrouded - 4 Wall	UL94 V-0	-55 °C	125 °C	0.05 in	1.27 mm	5.33 mm	0.21 in	34	0.05 in	1.27 mm	All	Push-Pull	Board Lock Keying Slot Pick and Place	Solder	Liquid Crystal Polymer (LCP)	2
Samtec Inc. SHF-117-01-S-D-RA	Tin	Gold	Phosphor Bronze	3.05 mm	0.12 in	Through Hole Right Angle	Header	Board to Cable/Wire			Square	3 A	Black	Male Pin	Shrouded - 4 Wall	UL94 V-0	-55 °C	125 °C	0.05 in	1.27 mm	5.6 mm	0.22 in	34	0.05 in	1.27 mm	All	Push-Pull	Keying Slot	Solder	Liquid Crystal Polymer (LCP)	2		2.16 mm		0.085 in
