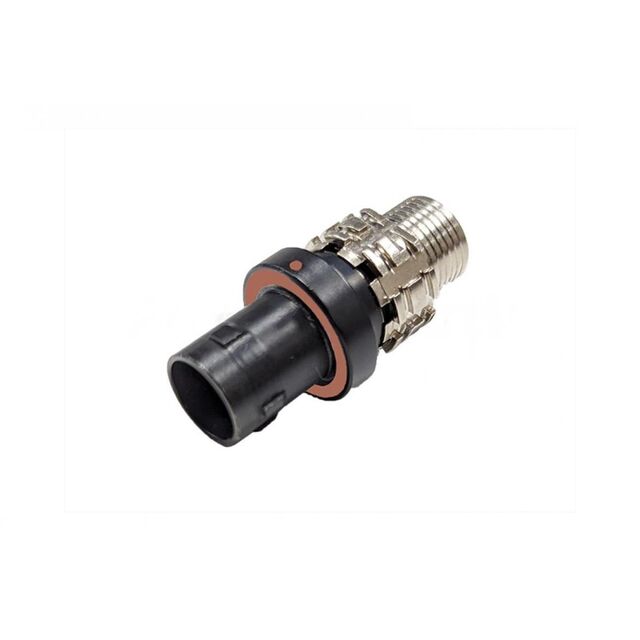

FDYC-14A1MS-RDK-000
ActiveAmphenol LTW
FLOS, Y SERIES C SIZE MILITARY CONNECTOR, METAL, 5A, 14 PINS, MALE CONNECTOR, MALE CONTACT, PUSH PULL, PUSH PULL, SOLDER, FIELD
Deep-Dive with AI
Search across all available documentation for this part.
FDYC-14A1MS-RDK-000
ActiveAmphenol LTW
FLOS, Y SERIES C SIZE MILITARY CONNECTOR, METAL, 5A, 14 PINS, MALE CONNECTOR, MALE CONTACT, PUSH PULL, PUSH PULL, SOLDER, FIELD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FDYC-14A1MS-RDK-000 |
|---|---|
| Cable Opening [custom] | 6.8 mm |
| Cable Opening [custom] | 0.268 in, 0.228 in |
| Cable Opening [custom] | 5.8 mm |
| Color | Silver |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 5 A |
| Fastening Type | Push-Pull |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 14 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | R |
| Primary Material | Metal |
| Shell Material | Metal |
| Shell Size - Insert | C-14 |
| Shielding | Shielded |
| Voltage Rating | 300 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
FDYC-14A1MS Series
14 Position Circular Connector Plug, Male Pins Solder Cup
Documents
Technical documentation and resources
No documents available
