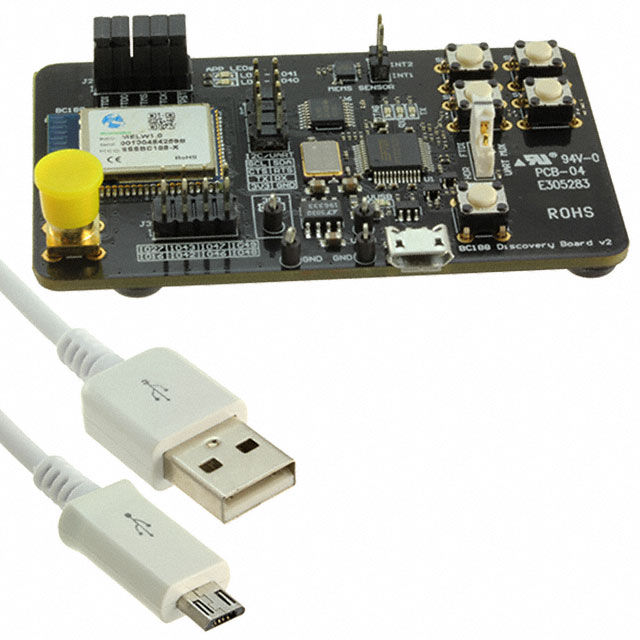

BC188-DISKIT001
ActiveSierra Wireless
DISCOVERY KIT BC188
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BC188-DISKIT001
ActiveSierra Wireless
DISCOVERY KIT BC188
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BC188-DISKIT001 | BC188 Series |
|---|---|---|
| Antenna Type | - | Integrated, Trace |
| Data Rate | - | 72.2 Mbps |
| For Use With/Related Products | BC188 | BC188 |
| Frequency | 2.4 GHz | 2.4 GHz |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 62-SMD Module |
| Power - Output | - | 26 dBm |
| Protocol | - | 802.11b/g/n |
| RF Family/Standard | - | WiFi |
| Sensitivity | - | -15 dBm |
| Serial Interfaces | - | SPI, I2C, I2S, UART |
| Supplied Contents | Board(s) | Board(s) |
| Type | Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN) | Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN) |
| Utilized IC / Part | - | BC188 |
| Voltage - Supply | - | 3.6 V |
| Voltage - Supply | - | 3 V |
BC188 Series
DISCOVERY KIT BC188
| Part | Frequency | For Use With/Related Products | Supplied Contents | Type | Package / Case | Antenna Type | Utilized IC / Part | Voltage - Supply [Max] | Voltage - Supply [Min] | RF Family/Standard | Power - Output | Mounting Type | Protocol | Data Rate | Serial Interfaces | Operating Temperature [Max] | Operating Temperature [Min] | Sensitivity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sierra Wireless BC188-DISKIT001 | 2.4 GHz | BC188 | Board(s) | Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN) | ||||||||||||||
Sierra Wireless BC188 | 2.4 GHz | 62-SMD Module | Integrated, Trace | BC188 | 3.6 V | 3 V | WiFi | 26 dBm | Surface Mount | 802.11b/g/n | 72.2 Mbps | I2C, I2S, SPI, UART | 85 °C | -40 °C | -15 dBm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
BC188 Series
BC - AirPrime® BC188 Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN) 2.4GHz Evaluation Board
