2L28050 008H100

Active

Belden Inc.

CBL RIBN 50COND 0.039 GRAY

Search across all available documentation for this part.

Active

Belden Inc.

CBL RIBN 50COND 0.039 GRAY

Technical Specifications

Parameters and characteristics for this part

Part	Length [x]	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Voltage	Insulation Resistance	Jacket Color	Wire Gauge	Ratings	Pitch [x]	Pitch [x]	Current Rating (Amps)	Ribbon Thickness	Ribbon Thickness	Cable Type	Number of Conductors	Shielding	First Conductor Mark	Ribbon Width	Ribbon Width	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material
Belden Inc. 2L28050 008H100	100 ft	30.48 m	-40 °C	105 ░C	Copper Tinned	300 V	10 GOhm	Gray	28 AWG	UL Style 2651	0.039 in	1 mm	1 A	0.89 mm	0.035 in	Flat Cable	50	Unshielded	Black	1.964 "	49.89 mm	7	36 AWG	Poly-Vinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 7.59

General part information

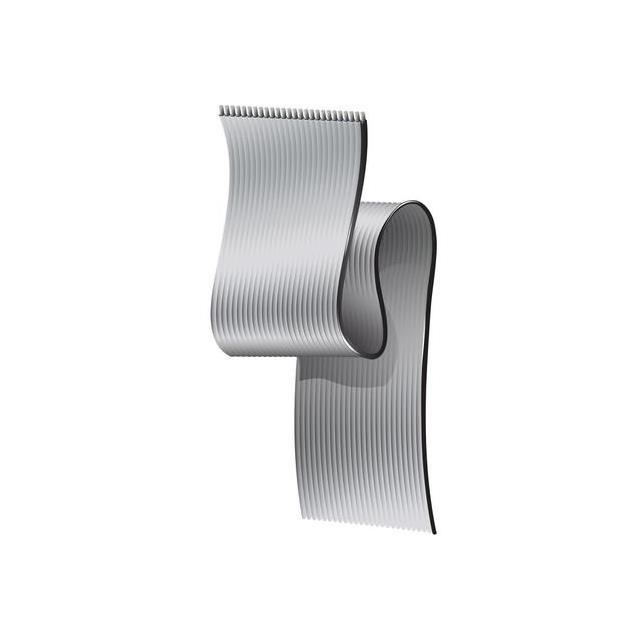

Flat Ribbon Cable Gray 50 Conductors 0.039" (1.00mm) Flat Cable 100.0' (30.48m)
