333-039-500-102

Active

EDAC Inc.

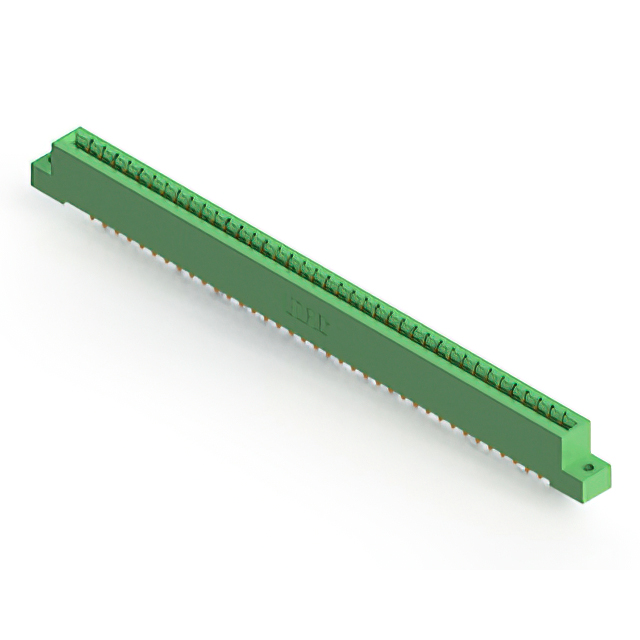

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 39 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Enhanced Product Overview EN +1

333-039-500-102

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 39 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Enhanced Product Overview EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	333-039-500-102

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	39
Number of Positions/Bay/Row [custom]	39
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Solder Eyelet(s)
Termination Rows	1

333-039 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Card Type	Contact Material	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Gender	Color	Mounting Type	Material - Insulation	Number of Positions/Bay/Row [custom]	Contact Finish	Termination	Flange Feature	Flange Feature	Flange Feature	Number of Positions	Number of Rows	Termination Rows	Contact Finish Thickness	Contact Finish Thickness	Read Out	Pitch [x]	Pitch [x]	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 333-039-523-612	-40 °C	105 ░C	Cantilever	Non Specified - Single Edge	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Green	Through Hole	Polyester Thermoplastic	39	Gold	Solder	Side Mount Opening Unthreaded	3.25 mm	0.128 in	39	1	1	10 Áin	0.25 Ám	Single	0.156 in	3.96 mm
EDAC Inc. 333-039-523-608	-40 °C	105 ░C	Cantilever	Non Specified - Single Edge	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Green	Through Hole	Polyester Thermoplastic	39	Gold	Solder	4-40 Threaded Insert Top Mount Opening			39	1	1	10 Áin	0.25 Ám	Single	0.156 in	3.96 mm
EDAC Inc. 333-039-540-103	-40 °C	105 ░C	Cantilever	Non Specified - Single Edge	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Green	Through Hole	Polyester Thermoplastic	39	Gold	Wire Wrap	Floating Bobbin Flush Mount			39	1	1	10 Áin	0.25 Ám	Single	0.156 in	3.96 mm	0.116 in	2.95 mm
EDAC Inc. 333-039-544-102	-40 °C	105 ░C	Cantilever	Non Specified - Single Edge	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Green	Through Hole	Polyester Thermoplastic	39	Gold	Wire Wrap	Flush Mount Top Opening Unthreaded			39	1	1	10 Áin	0.25 Ám	Single	0.156 in	3.96 mm	0.128 "	3.25 mm
EDAC Inc. 333-039-500-102	-40 °C	105 ░C	Cantilever	Non Specified - Single Edge	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Green	Through Hole	Diallyl Phthalate (DAP)	39	Gold	Solder Eyelet(s)	Flush Mount Top Opening Unthreaded			39	1	1	10 Áin	0.25 Ám	Single	0.156 in	3.96 mm	0.128 "	3.25 mm
EDAC Inc. 333-039-524-108	-40 °C	105 ░C	Cantilever	Non Specified - Single Edge	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Green	Through Hole	Polyester Thermoplastic	39	Gold	Solder	4-40 Flush Mount Threaded Insert Top Opening			39	1	1	10 Áin	0.25 Ám	Single	0.156 in	3.96 mm
EDAC Inc. 333-039-541-104	-40 °C	105 ░C	Cantilever	Non Specified - Single Edge	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Green	Through Hole	Polyester Thermoplastic	39	Gold	Wire Wrap	Flush Mount Top Opening Unthreaded			39	1	1	10 Áin	0.25 Ám	Single	0.156 in	3.96 mm	0.156 in	3.96 mm
EDAC Inc. 333-039-541-602	-40 °C	105 ░C	Cantilever	Non Specified - Single Edge	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Green	Through Hole	Polyester Thermoplastic	39	Gold	Wire Wrap		3.25 mm	0.128 in	39	1	1	10 Áin	0.25 Ám	Single	0.156 in	3.96 mm
EDAC Inc. 333-039-520-108	-40 °C	105 ░C	Cantilever	Non Specified - Single Edge	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Green	Through Hole	Polyester Thermoplastic	39	Gold	Solder	4-40 Flush Mount Threaded Insert Top Opening			39	1	1	10 Áin	0.25 Ám	Single	0.156 in	3.96 mm
EDAC Inc. 333-039-558-107	-40 °C	105 ░C	Cantilever	Non Specified - Single Edge	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Green	Through Hole Right Angle	Polyester Thermoplastic	39	Gold	Solder	Flush Mount M3 Threaded Insert Top Opening			39	1	1	10 Áin	0.25 Ám	Single	0.156 in	3.96 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 25.60
Newark	Each	1	$ 28.60
		100	$ 14.98
		250	$ 13.68
		500	$ 13.03
		1000	$ 11.21

Description

General part information

333-039 Series

39 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green

Documents

Technical documentation and resources

Datasheet

Enhanced Product Overview EN

Datasheet

Drawing EN

Datasheet
