ER0999-000

Active

TE Connectivity Raychem Cable Protection

FEP-375-225-015-X-48IN

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

FEP-375-225-015-X-48IN

Technical Specifications

Parameters and characteristics for this part

Specification	ER0999-000

Color	Clear
Inner Diameter - Recovered [diameter]	5.84 mm
Inner Diameter - Recovered [diameter]	0.23 in
Inner Diameter - Supplied [diameter]	9.6 mm
Inner Diameter - Supplied [diameter]	0.378 in
Length [x]	1.22 m
Length [x]	4 ft
Material	Fluorinated Ethylene Propylene (FEP)
Operating Temperature [Max]	190 °C
Operating Temperature [Min]	-70 °C
Recovered Wall Thickness	0.015 in
Recovered Wall Thickness	0.38 mm
Shrink Temperature	210 °C
Shrinkage Ratio [Max]	1.6
Shrinkage Ratio [Min]	1
Storage/Refrigeration Temperature [Max]	35 °C
Storage/Refrigeration Temperature [Min]	0 °C
Type	Tubing, Semi Rigid

Part	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Type	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Length [x]	Length [x]	Color	Operating Temperature [Min]	Operating Temperature [Max]	Material	Recovered Wall Thickness	Recovered Wall Thickness	Shrink Temperature
TE Connectivity Raychem Cable Protection ER0999-000	5.84 mm	0.23 in	1	1.6	35 °C	0 °C	Tubing Semi Rigid	9.6 mm	0.378 in	1.22 m	4 ft	Clear	-70 °C	190 °C	Fluorinated Ethylene Propylene (FEP)	0.015 in	0.38 mm	210 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 15.37

General part information

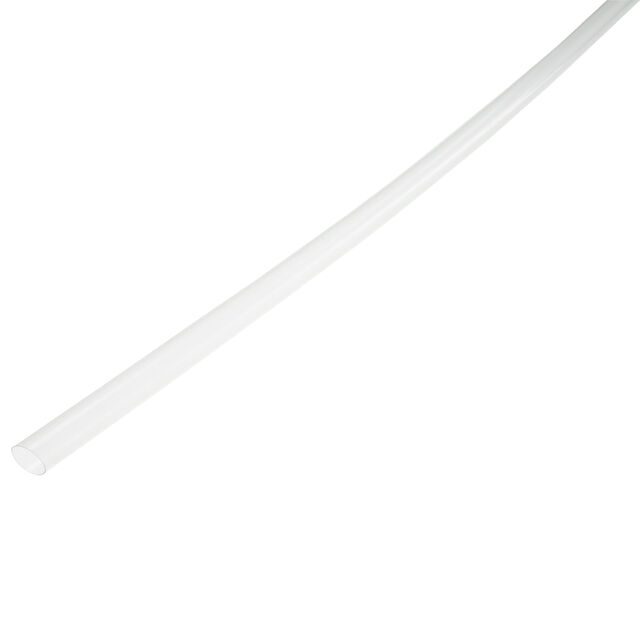

Heat Shrink Tubing, Semi Rigid 0.378" (9.60mm) 1.6 to 1 Clear 4.00' (1.22m)

Technical documentation and resources
