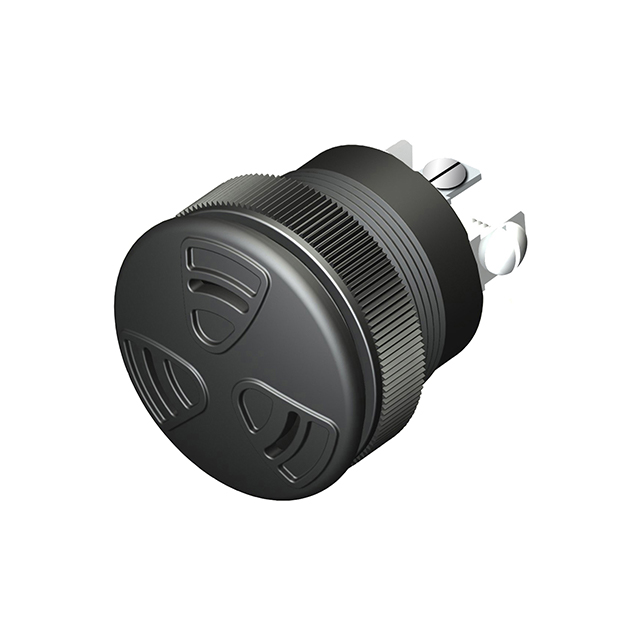

Specification	TXL7-96-930-S

Approval Agency	UL, UR
Current - Supply (Max)	45 mA
Current - Supply (Min)	15 mA
Driver Circuitry	Indicator, Internally Driven
Frequency	1.8 kHz
Height - Seated (Max)	1.63 in
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Input Type	DC
Mounting Type	Panel Mount
Operating Mode	Multiple Tone
Operating Temperature (Max)	65 °C
Operating Temperature (Min)	-20 °C
Port Location	Top
Size / Dimension Diameter	2.02 in
Sound Pressure Level (SPL)	108 dB
Technology	Piezo
Termination	Screw Terminal, Quick Connect Tab - (6.35mm)
Termination Probe Tip OD	0.25 in
Voltage Range (Max)	30 VDC
Voltage Range (Min)	9 V

TXL7-96 Series

Part	Frequency	Current - Supply (Min)	Current - Supply (Max)	Mounting Type	Size / Dimension Diameter	Voltage Range (Max)	Voltage Range (Min)	Operating Temperature (Min)	Operating Temperature (Max)	Height - Seated (Max)	Technology	Approval Agency	Operating Mode	Sound Pressure Level (SPL)	Ingress Protection IP Rating	Ingress Protection Description	Port Location	Driver Circuitry	Input Type	Termination Probe Tip OD	Termination
Floyd Bell Inc TXL7-96-930-S	1.8 kHz	15 mA	45 mA	Panel Mount	2.02 in	30 VDC	9 V	-20 °C	65 °C	1.63 in	Piezo	UL UR	Multiple Tone	108 dB	IP68	Dust Tight Waterproof	Top	Indicator Internally Driven	DC	0.25 in	Quick Connect Tab - (6.35mm) Screw Terminal
Floyd Bell Inc TXL7-96-930-Q	1.8 kHz	15 mA	45 mA	Panel Mount	2.02 in	30 VDC	9 V	-20 °C	65 °C	1.63 in	Piezo	UL UR	Multiple Tone	108 dB	IP68	Dust Tight Waterproof	Top	Indicator Internally Driven	DC	0.25 in	Quick Connect Tab - (6.35mm)
