796271-1

Active

TE Connectivity AMP Connectors

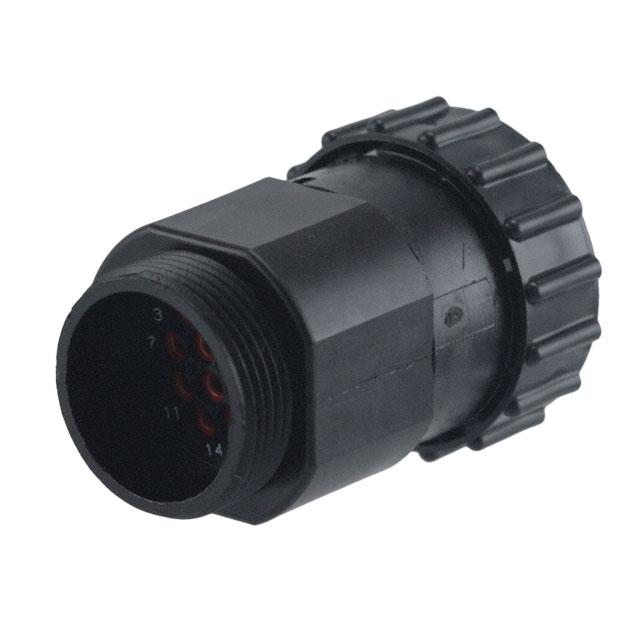

CONN PLUG HSG MALE 14POS INLINE

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG HSG MALE 14POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	796271-1

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Features	Coupling Nut, Backshell
Housing Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	14
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Shell Size - Insert	17-14
Shielding	Unshielded
Type	For Male Pins

CONN PLUG HSG MALE 14POS INLINE

Part	Housing Color	Contact Size	Note	Operating Temperature [Max]	Operating Temperature [Min]	Features	Number of Positions	Connector Type	Shell Size - Insert	Mounting Type	Type	Material Flammability Rating	Contact Type	Shielding	Ingress Protection	Contact Shape	Orientation
TE Connectivity AMP Connectors 796271-1	Black	16	Contacts Not Included	105 ░C	-55 °C	Backshell, Coupling Nut	14	Plug Housing	17-14	Free Hanging (In-Line)	For Male Pins	UL94 V-0	Crimp	Unshielded	IP67 - Dust Tight, Waterproof	Circular	Keyed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

14 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut
