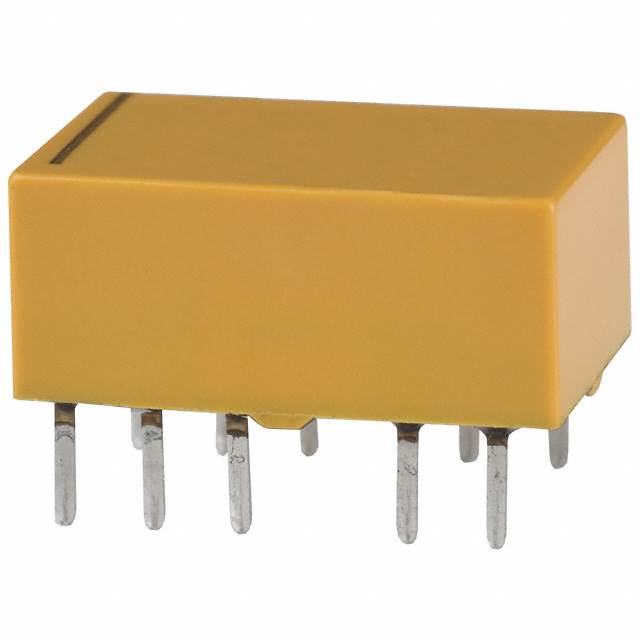

DF2E-L2-DC9V

Obsolete

Panasonic Electric Works

RELAY GENERAL PURPOSE DPDT 1A 9V

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

RELAY GENERAL PURPOSE DPDT 1A 9V

Technical Specifications

Parameters and characteristics for this part

Part	Release Time	Contact Material	Coil Voltage	Relay Type	Operating Temperature [Min]	Operating Temperature [Max]	Load - Max Switching	Coil Type	Operate Time	Termination Style	Contact Form	Contact Rating (Current)	Mounting Type	Coil Current	Must Operate Voltage	Switching Voltage [Max]	Coil Resistance
Panasonic Electric Works DF2E-L2-DC24V	3 ms	Gold (Au) Silver (Ag)	24 VDC	General Purpose	-40 °C	70 °C	60 W 125 VA	Latching Dual Coil	5 ms	PC Pin	DPDT (2 Form C)	1 A	Through Hole	8.3 mA	19.2 VDC	60 VDC 125 VAC	2.88 kOhms
Panasonic Electric Works DF2E-L2-DC12V	3 ms	Gold (Au) Silver (Ag)	12 VDC	General Purpose	-40 °C	70 °C	60 W 125 VA	Latching Dual Coil	5 ms	PC Pin	DPDT (2 Form C)	1 A	Through Hole	16.7 mA	9.6 VDC	60 VDC 125 VAC	720 Ohms
Panasonic Electric Works DF2E-L2-DC9V	3 ms	Gold (Au) Silver (Ag)	9 VDC	General Purpose	-40 °C	70 °C	60 W 125 VA	Latching Dual Coil	5 ms	PC Pin	DPDT (2 Form C)	1 A	Through Hole	22.2 mA	7.2 VDC	60 VDC 125 VAC	405 Ohms
Panasonic Electric Works DF2E-L2-DC6V	3 ms	Gold (Au) Silver (Ag)		General Purpose	-40 °C	70 °C	60 W 125 VA	Latching Dual Coil	5 ms	PC Pin	DPDT (2 Form C)	1 A	Through Hole	33.3 mA	4.8 VDC	60 VDC 125 VAC	180 Ohms
