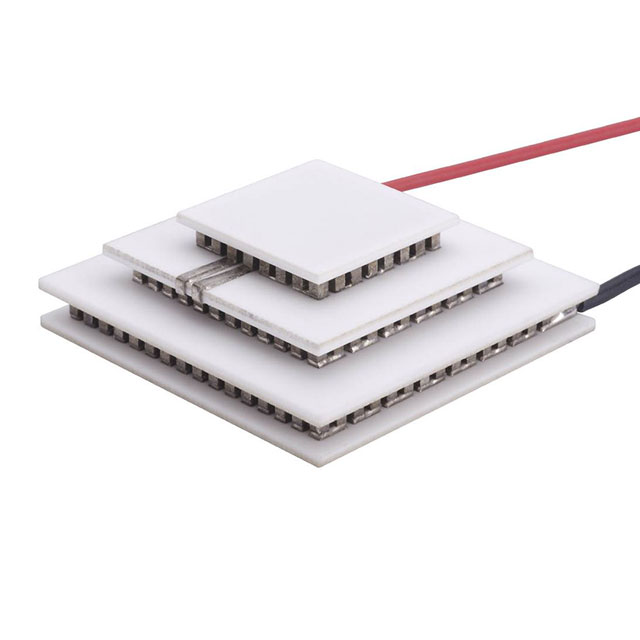

Specification	9340004-309

Current - Max	3.9 A
Delta Tmax	100 °C
Features	Lead Wires, Sealed, Epoxy
Height	10.59 mm
Maximum Power Dissipation (Qmax)	7.5 W
Number of Stages	3
Operating Temperature	80 °C
Size / Dimension Length	30 mm
Size / Dimension Shape	Square
Size / Dimension Width	30 mm
Voltage - Max	8.1 V

9340004 Series

Part	Size / Dimension Width	Size / Dimension Shape	Size / Dimension Length	Features	Voltage - Max	Height	Current - Max	Maximum Power Dissipation (Qmax)	Number of Stages	Delta Tmax	Operating Temperature
Laird Thermal Systems, Inc. 9340004-304	30 mm	Square	30 mm	Lead Wires Non-Sealed	15.5 V	9.7 mm	1.9 A	6.9 W	3	104 °C	80 °C
Laird Thermal Systems, Inc. 9340004-301	30 mm	Square	30 mm	Lead Wires Non-Sealed	15.5 V	9.5 mm	1.9 A	6.9 W	3	104 °C	80 °C
Laird Thermal Systems, Inc. 9340004-309	30 mm	Square	30 mm	Epoxy Lead Wires Sealed	8.1 V	10.59 mm	3.9 A	7.5 W	3	100 °C	80 °C
Laird Thermal Systems, Inc. 9340004-308	30 mm	Square	30 mm	Lead Wires Sealed Silicone RTV	15.5 V	9.7 mm	1.9 A	6.9 W	3	104 °C	80 °C
