Specification	2049270601

Connector Type	Center Strip Contacts, Receptacle
Contact Finish	Gold
Features	Solder Retention, Pick and Place
Height Above Board	0.066 in
Mated Stacking Height	3 mm
Mounting Type	Surface Mount
Number of Positions	60
Number of Rows	2
Pitch	0.016 in

204927 Series

Part	Height Above Board	Contact Finish	Number of Positions	Pitch	Features	Connector Type	Mounting Type	Mated Stacking Height	Number of Rows

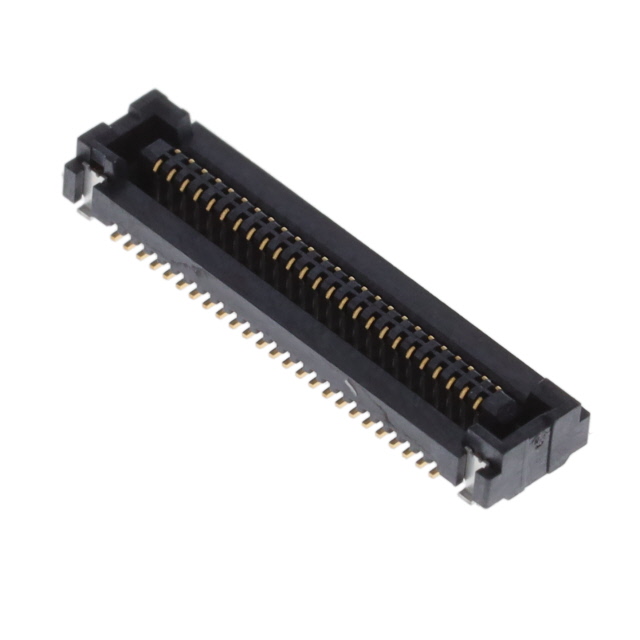

Molex 2049270501	0.066 in	Gold	50	0.016 in	Pick and Place Solder Retention	Center Strip Contacts Receptacle	Surface Mount	3 mm	2
Molex 2049270601	0.066 in	Gold	60	0.016 in	Pick and Place Solder Retention	Center Strip Contacts Receptacle	Surface Mount	3 mm	2
Molex 2049270301	0.066 in	Gold	30	0.016 in	Pick and Place Solder Retention	Center Strip Contacts Receptacle	Surface Mount	3 mm	2
Molex 2049270401	0.066 in	Gold	40	0.016 in	Pick and Place Solder Retention	Center Strip Contacts Receptacle	Surface Mount	3 mm	2
Molex 2049270201	0.066 in	Gold	20	0.016 in	Pick and Place Solder Retention	Center Strip Contacts Receptacle	Surface Mount	3 mm	2
