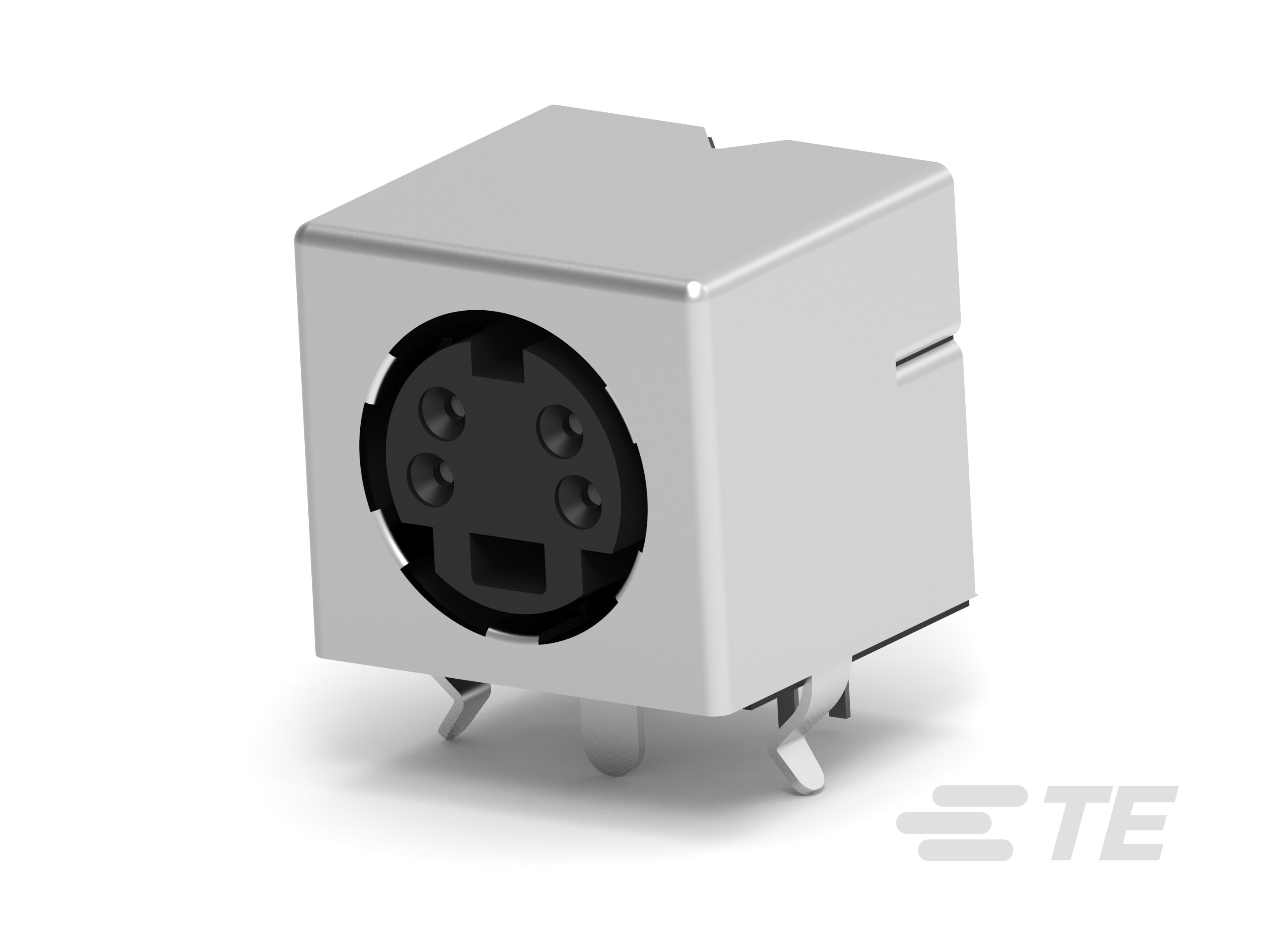

Specification	5749181-1

Applications	Audio, Video
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30 µin
Contact Material	Copper Alloy
Current Rating	1 A
Fastening Type	Push-Pull
Features	Board Lock
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	4
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Thermoplastic
Shell Size - Insert	Mini DIN
Shielding	Shielded
Termination	Solder
Voltage Rating	30 V

5749181 Series

Part	Number of Positions	Material Flammability Rating	Shell Material	Shielding	Features	Orientation	Contact Finish - Mating	Termination	Connector Type	Operating Temperature (Min)	Operating Temperature (Max)	Shell Size - Insert	Current Rating	Primary Material	Voltage Rating	Mounting Type	Fastening Type	Contact Material	Applications	Contact Finish Thickness - Mating
TE Connectivity AMP Connectors 5749181-1	4	UL94 V-0	Thermoplastic	Shielded	Board Lock	Keyed	Gold	Solder	Female Sockets Receptacle	-55 °C	105 °C	Mini DIN	1 A	Plastic	30 V	Right Angle Through Hole	Push-Pull	Copper Alloy	Audio Video	30 µin
