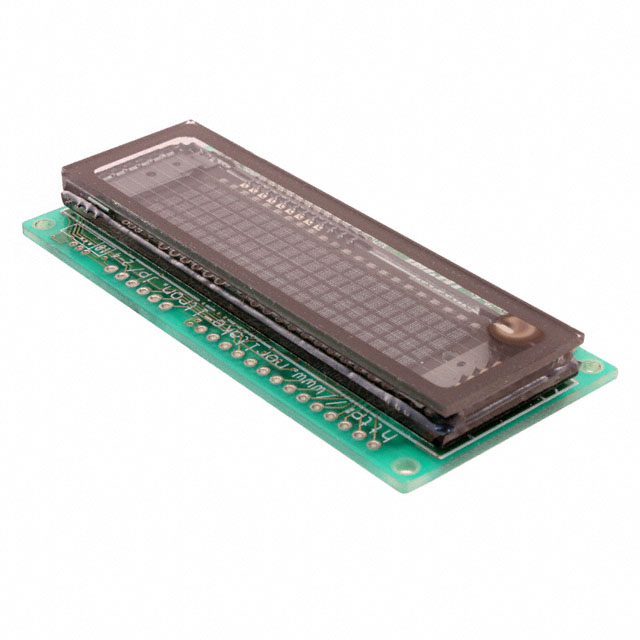

CU22042-Y1A

Active

Noritake U.S.A., Inc.

VFD CHARACTER 22X4 2.35MM

Search across all available documentation for this part.

Active

Noritake U.S.A., Inc.

VFD CHARACTER 22X4 2.35MM

Technical Specifications

Parameters and characteristics commom to parts in this series

VFD CHARACTER 22X4 2.35MM

Part	Operating Temperature [Max]	Operating Temperature [Min]	Interface	Outline L x W x H [x]	Outline L x W x H [z]	Outline L x W x H [y]	Display Format [x]	Display Format [y]	Display Type	Format [x]	Format [y]	Viewing Area [y]	Viewing Area [x]	Character Size [y]	Character Size [z]
Noritake U.S.A., Inc. CU22042-Y100	85 °C	-40 °C	Parallel/Serial	80 mm	8.5 mm	36 mm	22	4	Character	5 Dots	8 Dots	11.5 mm	52.5 mm	1.66 mm	2.35 mm
Noritake U.S.A., Inc. CU22042-Y1A	85 °C	-40 °C	Parallel/Serial	80 mm	8.5 mm	36 mm	22	4	Character	5 Dots	8 Dots	11.5 mm	52.5 mm	1.66 mm	2.35 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Vacuum Fluorescent Display (VFD) 22 x 4 Character 5V Parallel/Serial 80.00mm x 36.00mm x 8.50mm
