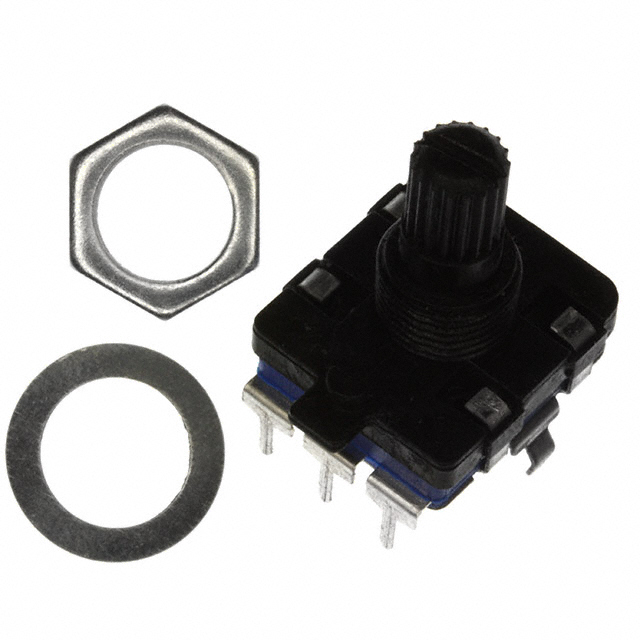

ACZ16NBR1E-15KQD1-24C

Active

CUI Devices

ROTARY ENCODER INCREMENT 24PPR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ACZ16NBR1E-15KQD1-24C

Active

CUI Devices

ROTARY ENCODER INCREMENT 24PPR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 2.41
		5	$ 2.03
		10	$ 1.89
		25	$ 1.71
		60	$ 1.56
		120	$ 1.44
		300	$ 1.31
		540	$ 1.23
		1020	$ 1.15

Description

General part information

ACZ16 Series

Rotary Encoder Incremental 24 Quadrature (Incremental) Vertical

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ACZ16NBR1E-15KQD1-24C	ACZ16 Series

Accessory Type	-	Washer
Actuator Type	Knurled End	Flatted End, Knurled End
Actuator Type [diameter]	6 mm	6 mm
Built in Switch	False	True, False
Detent	True	True
Encoder Type	Incremental	Incremental
For Use With/Related Products	-	ACZ 16 Encoder
Mounting Type	PCB Through Hole, Panel	PCB Through Hole, Panel
Orientation	Vertical	Vertical, Right Angle, Horizontal
Output Type	Quadrature (Incremental)	Quadrature (Incremental)
Pulses per Revolution	24 per Revolution	12 - 24 per Revolution
Rotational Life (Cycles Min) [Min]	100K	100K
Termination Style	PC Pin	PC Pin

ACZ16 Series

MECHANICAL ENCODER ROTARY INCREMENTAL KNURL 0.01N.M STRAIGHT QUADRATURE DIGITAL SQUARE WAVE 24PPR THROUGH HOLE PC PIN

Part	Rotational Life (Cycles Min) [Min]	Termination Style	Actuator Type [diameter]	Actuator Type	Pulses per Revolution	Output Type	Orientation	Mounting Type	Encoder Type	For Use With/Related Products	Accessory Type
CUI Devices ACZ16BR1E-15KQD1-24C	100K	PC Pin	6 mm	Flatted End	24 per Revolution	Quadrature (Incremental)	Vertical	Panel, PCB Through Hole	Incremental
CUI Devices ACZ16 WASHER										ACZ 16 Encoder	Washer
CUI Devices ACZ16NBR1E-15KQD1-24C	100K	PC Pin	6 mm	Knurled End	24 per Revolution	Quadrature (Incremental)	Vertical	Panel, PCB Through Hole	Incremental
CUI Devices ACZ16NBR1E-15KQD1-12C	100K	PC Pin	6 mm	Knurled End	12 pulses per revolution	Quadrature (Incremental)	Vertical	Panel, PCB Through Hole	Incremental
CUI Devices ACZ16BR1E-20FD1-20C	100K	PC Pin	6 mm	Flatted End	20	Quadrature (Incremental)	Vertical	Panel, PCB Through Hole	Incremental
CUI Devices ACZ16NBR1E-15FD1-24C	100K	PC Pin	6 mm	Flatted End	24 per Revolution	Quadrature (Incremental)	Vertical	Panel, PCB Through Hole	Incremental
CUI Devices ACZ16NBR1E-20FA1-24C	100K	PC Pin	6 mm	Flatted End	24 per Revolution	Quadrature (Incremental)	Right Angle	Panel, PCB Through Hole	Incremental
CUI Devices ACZ16NBR1E-20KQA1-24C	100K	PC Pin	6 mm	Knurled End	24 per Revolution	Quadrature (Incremental)	Right Angle	Panel, PCB Through Hole	Incremental
CUI Devices ACZ16BR1E-15KQD1-12C	100K	PC Pin	6 mm	Knurled End	12 pulses per revolution	Quadrature (Incremental)	Vertical	Panel, PCB Through Hole	Incremental
CUI Devices ACZ16NBR1E-15KQA1-12C	100K	PC Pin	6 mm	Knurled End	12 pulses per revolution	Quadrature (Incremental)	Right Angle	Panel, PCB Through Hole	Incremental
