102548-5
ActiveTE Connectivity AMP Connectors

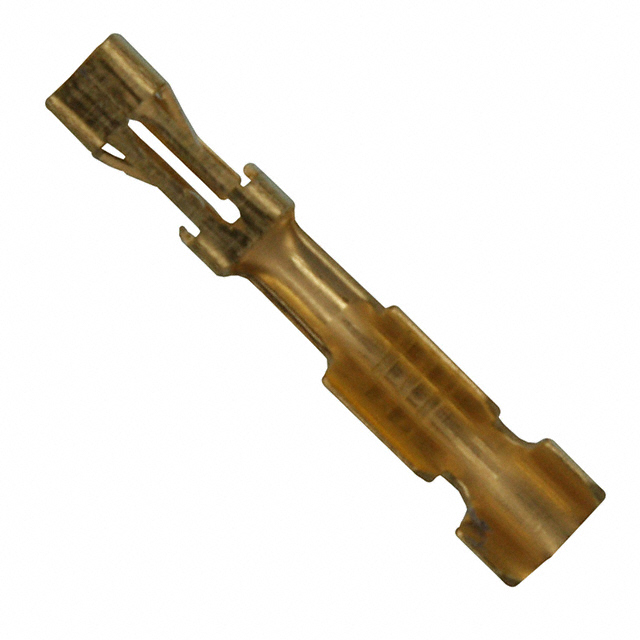

CONN SOCKET 22-26AWG CRIMP GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
102548-5
ActiveTE Connectivity AMP Connectors
CONN SOCKET 22-26AWG CRIMP GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 102548-5 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Termination | Crimp |
| Pin or Socket | Socket |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.52 | |
| 10 | $ 0.49 | |||
| 25 | $ 0.49 | |||
| 50 | $ 0.48 | |||
| 100 | $ 0.41 | |||
| 250 | $ 0.37 | |||
| 500 | $ 0.35 | |||
| 1000 | $ 0.31 | |||
| 2500 | $ 0.30 | |||
| Tape & Reel (TR) | 12500 | $ 0.25 | ||
102548 Series
CONN SOCKET 22-26AWG CRIMP GOLD
| Part | Pin or Socket | Contact Termination | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Wire Gauge [Min] | Wire Gauge [Max] |
|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 102548-5 | Socket | Crimp | 0.76 Ám | 30 Áin | Gold | 22 AWG | 26 AWG |
Description
General part information
102548 Series
Socket Contact Gold 22-26 AWG Crimp
