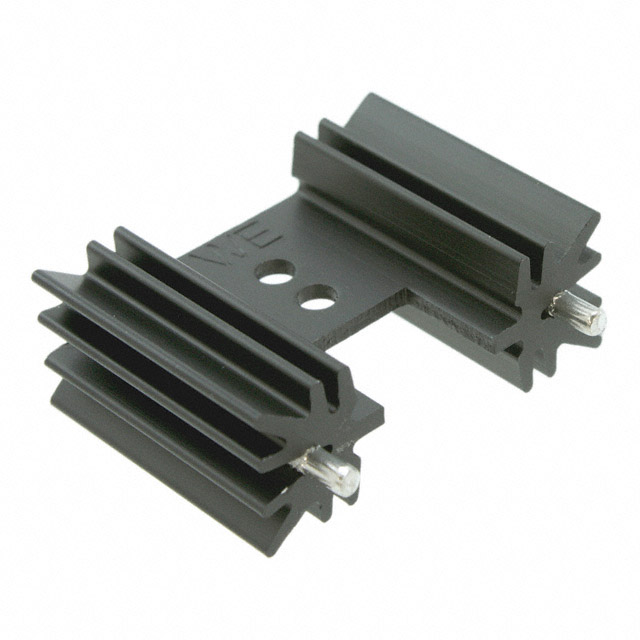

637-10ABPE

Active

Wakefield-Vette

HEATSINK TO-220 VERT MT BLK 1"

Search across all available documentation for this part.

Active

Wakefield-Vette

HEATSINK TO-220 VERT MT BLK 1"

Technical Specifications

Parameters and characteristics for this part

Specification	637-10ABPE

Attachment Method	Board Mounts, Bolt On
Fin Height [z]	12.7 mm
Fin Height [z]	0.5 in
Length [x]	1 in
Length [x]	25.4 mm
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	TO-220
Power Dissipation @ Temperature Rise	6 W
Shape	Rectangular, Fins
Thermal Resistance @ Forced Air Flow	5.8 °C/W
Type	Board Level, Vertical
Width	34.93 mm
Width	1.375 "

Part	Attachment Method	Thermal Resistance @ Forced Air Flow	Package Cooled	Material Finish	Type	Shape	Material	Width	Width	Length [x]	Length [x]	Fin Height [z]	Fin Height [z]	Power Dissipation @ Temperature Rise
Wakefield-Vette 637-10ABPE	Board Mounts Bolt On	5.8 °C/W	TO-220	Black Anodized	Board Level Vertical	Rectangular Fins	Aluminum	34.93 mm	1.375 "	1 in	25.4 mm	12.7 mm	0.5 in	6 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink TO-220 Aluminum 6.0W @ 76°C Board Level, Vertical
