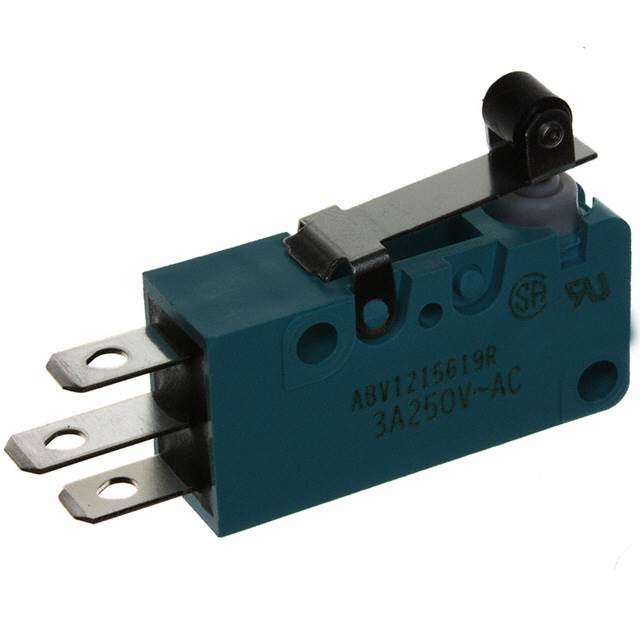

ABV1215619R

Obsolete

Panasonic Electric Works

SWITCH SNAP ACTION SPDT 3A 250V

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

SWITCH SNAP ACTION SPDT 3A 250V

Technical Specifications

Parameters and characteristics for this part

SWITCH SNAP ACTION SPDT 3A 250V

Part	Mechanical Life	Current Rating (Amps)	Overtravel	Overtravel	Operating Temperature [Max]	Operating Temperature [Min]	Differential Travel	Differential Travel	Pretravel	Pretravel	Voltage Rating - AC	Mounting Type	Circuit	Actuator Type	Ingress Protection	Operating Position	Operating Position	Release Force	Switch Function	Termination Style	Termination Style	Electrical Life	Operating Force
Panasonic Electric Works ABV1215619R	5000000 Cycles	3 A	0.76 mm	0.03 in	85 °C	-40 °C	0.5 mm	0.02 in	0.063 in	1.6 mm	250 V	Chassis Mount	SPDT	Lever, Roller	IP50	20.7 mm	0.815 in	60 gf	On-Mom	Quick Connect, Solder	0.187 in, 4.7 mm	100000 Cycles	320 gf
