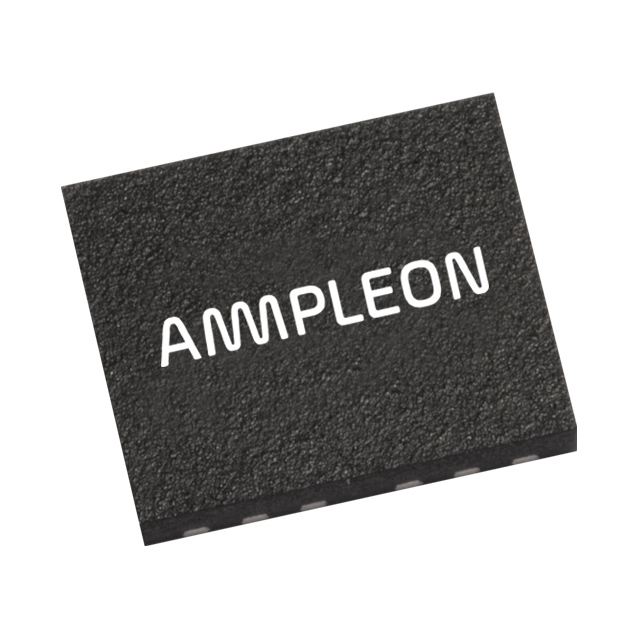

BLP10H610Z

Obsolete

Ampleon USA Inc.

RF MOSFET LDMOS 50V 12HVSON

Search across all available documentation for this part.

Obsolete

Ampleon USA Inc.

RF MOSFET LDMOS 50V 12HVSON

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Mosfet 50 V 60 mA 860MHz 22dB 10W 12-HVSON (6x5)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

RF MOSFET LDMOS 50V 4HSOP

Part	Power - Output	Frequency	Gain	Mounting Type	Supplier Device Package	Voltage - Test	Voltage - Rated	Current Rating (Amps)	Current - Test	Package / Case	Package / Case [y]	Package / Case [y]	Configuration
Ampleon USA Inc. BLP10H630PGY	30 W	1 GHz	18 dBi	Surface Mount	4-HSOP	50 V	110 V	1.4 µA	20 mA	4-BESOP	4.4 mm	0.173 in
Ampleon USA Inc. BLP10H603AZ	2.5 W	860 MHz	22.8 dB	Surface Mount	12-HVSON	50 V	104 V		15 mA	12-VDFN Exposed Pad
Ampleon USA Inc. BLP10H603Z	2.5 W	860 MHz	22.8 dB	Surface Mount	12-HVSON (6x5)	50 V	104 V		15 mA	12-VDFN Exposed Pad
Ampleon USA Inc. BLP10H690PY	90 W	1 GHz	18 dBi		4-HSOPF	50 V	110 V	1.4 µA	60 mA	SOT-1223-2
Ampleon USA Inc. BLP10H610Z	10 W	860 MHz	22 dBi	Surface Mount	12-HVSON (6x5)	50 V	104 V		60 mA	12-VDFN Exposed Pad			Common Source, Dual
Ampleon USA Inc. BLP10H6120PY	120 W	1 GHz	18 dBi		4-HSOPF	50 V	110 V	1.4 µA	80 mA	SOT-1223-2
Ampleon USA Inc. BLP10H610AZ	10 W	860 MHz	22 dBi	Surface Mount	12-HVSON (6x5)	50 V	104 V		60 mA	12-VDFN Exposed Pad			Common Source, Dual
Ampleon USA Inc. BLP10H630PY	30 W	1 GHz	18 dBi		4-HSOPF	50 V	110 V	1.4 µA	20 mA	SOT-1223-2
Ampleon USA Inc. BLP10H660PY	60 W	1 GHz	18 dBi		4-HSOPF	50 V	110 V	1.4 µA	40 mA	SOT-1223-2
Ampleon USA Inc. BLP10H605Z	5 W	860 MHz	22.4 dB	Surface Mount	12-HVSON (6x5)	50 V	104 V		30 mA	12-VDFN Exposed Pad			Common Source, Dual
