3326-2.5-5

Active

3M (TC)

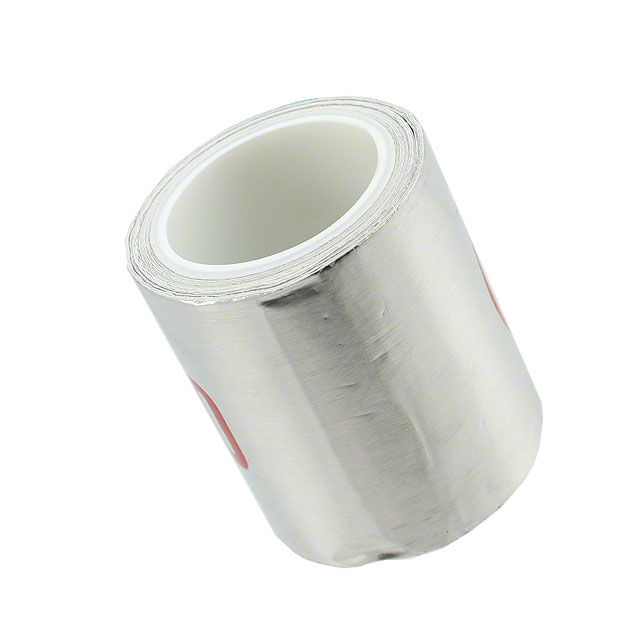

TAPE ALUM FOIL SILVER 2 1/2"X5YD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3326-2.5-5

Active

3M (TC)

TAPE ALUM FOIL SILVER 2 1/2"X5YD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3326-2.5-5

Adhesive	Acrylic
Backing, Carrier	Aluminum
Color	Silver
Length	4.6 m
Length	15 ft
Length	5 yd
Tape Type	Aluminum Foil
Temperature Range [Max]	121 °C
Temperature Range [Max]	250 °F
Temperature Range [Min]	-20 °F
Temperature Range [Min]	-29 °C
Thickness - Adhesive	2.1 mils
Thickness - Adhesive	0.0021 "
Thickness - Adhesive	0.053 mm
Thickness - Backing, Carrier	0.058 mm
Thickness - Backing, Carrier	2.3 mils
Thickness - Backing, Carrier	0.0023 "
Usage	Sealing
Width
Width	63.5 mm
Width	2.5 in

3326 Series

Part	Shelf Life	Color	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Max]	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Width	Width	Tape Type	Length [x]	Length [x]	Adhesive	Shelf Life Start	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Length	Length	Length	Width [y]	Width [y]	Usage
3M (TC) 3M 3326 2.5" X 4"-5	12 Months	Silver	-20 °F	250 °F	-29 °C	121 °C	2.1 mils	0.0021 "	0.053 mm	63.5 mm	2.5 in	Aluminum Foil	101.6 mm	4 "	Acrylic	Date of Manufacture	16 °C 60 °F	27 °C 80 °F	Aluminum Foil	0.058 mm	2.3 mils	0.0023 "
3M (TC) 3M 3326 2.5" X 3"-5	12 Months	Silver	-20 °F	250 °F	-29 °C	121 °C	2.1 mils	0.0021 "	0.053 mm	63.5 mm	2.5 in	Aluminum Foil		3 in	Acrylic	Date of Manufacture	16 °C 60 °F	27 °C 80 °F	Aluminum Foil	0.058 mm	2.3 mils	0.0023 "	76.2 mm
3M (TC) 3M 3326 2.5" X 6"-250	12 Months	Silver	-20 °F	250 °F	-29 °C	121 °C	2.1 mils	0.0021 "	0.053 mm	63.5 mm	2.5 in	Aluminum Foil			Acrylic	Date of Manufacture	16 °C 60 °F	27 °C 80 °F	Aluminum Foil	0.058 mm	2.3 mils	0.0023 "	152.4 mm	6 in
3M (TC) 3M 3326 2.5" X 1"-250	12 Months	Silver	-20 °F	250 °F	-29 °C	121 °C	2.1 mils	0.0021 "	0.053 mm	63.5 mm	2.5 in	Aluminum Foil	25.4 mm	1 in	Acrylic	Date of Manufacture	16 °C 60 °F	27 °C 80 °F	Aluminum Foil	0.058 mm	2.3 mils	0.0023 "
3M (TC) 2-12-10-3326	12 Months	Silver	-20 °F	250 °F	-29 °C	121 °C	2.1 mils	0.0021 "	0.053 mm			Aluminum Foil		36 '	Acrylic	Date of Manufacture	16 °C 60 °F	27 °C 80 °F	Aluminum Foil	0.058 mm	2.3 mils	0.0023 "	11 m		12 yds	2 "	50.8 mm
3M (TC) 3M 3326 2.5" X 1.5"-250	12 Months	Silver	-20 °F	250 °F	-29 °C	121 °C	2.1 mils	0.0021 "	0.053 mm	63.5 mm	2.5 in	Aluminum Foil			Acrylic	Date of Manufacture	16 °C 60 °F	27 °C 80 °F	Aluminum Foil	0.058 mm	2.3 mils	0.0023 "	38.1 mm	1.5 "
3M (TC) 3326-2.5-5		Silver	-20 °F	250 °F	-29 °C	121 °C	2.1 mils	0.0021 "	0.053 mm	63.5 mm	2.5 in	Aluminum Foil			Acrylic				Aluminum	0.058 mm	2.3 mils	0.0023 "	4.6 m	15 ft	5 yd			Sealing
3M (TC) 3M 3326 2.5" X 0.5"-250	12 Months	Silver	-20 °F	250 °F	-29 °C	121 °C	2.1 mils	0.0021 "	0.053 mm	63.5 mm	2.5 in	Aluminum Foil			Acrylic	Date of Manufacture	16 °C 60 °F	27 °C 80 °F	Aluminum Foil	0.058 mm	2.3 mils	0.0023 "	12.7 mm	0.5 in	0.5 in
3M (TC) 3M 3326 2.5" X 1.25"-250	12 Months	Silver	-20 °F	250 °F	-29 °C	121 °C	2.1 mils	0.0021 "	0.053 mm	63.5 mm	2.5 in	Aluminum Foil			Acrylic	Date of Manufacture	16 °C 60 °F	27 °C 80 °F	Aluminum Foil	0.058 mm	2.3 mils	0.0023 "	31.75 mm	1.25 in
3M (TC) 3M 3326 2.5" X 0.75"-250	12 Months	Silver	-20 °F	250 °F	-29 °C	121 °C	2.1 mils	0.0021 "	0.053 mm	63.5 mm	2.5 in	Aluminum Foil			Acrylic	Date of Manufacture	16 °C 60 °F	27 °C 80 °F	Aluminum Foil	0.058 mm	2.3 mils	0.0023 "	19.05 mm	0.75 in	0.75 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.89
		10	$ 19.20
		25	$ 18.40
		100	$ 16.22
		250	$ 15.42
		500	$ 14.43

Description

General part information

3326 Series

Aluminum Foil Tape Acrylic Adhesive Silver 2.50" (63.50mm) 2 1/2" X 15' (4.6m) 5 yds
