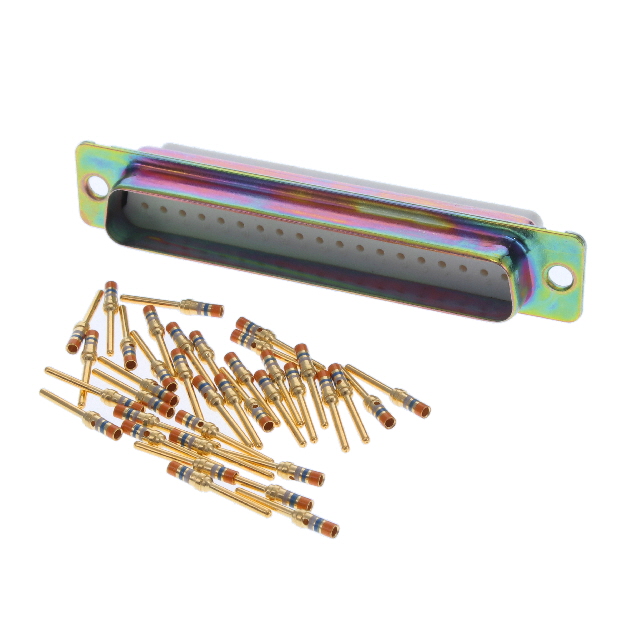

M24308/4-4Z
ActiveAmphenol Interconnect India
DSUB CONN,CRIMP, PLUG, ZINC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M24308/4-4Z
ActiveAmphenol Interconnect India
DSUB CONN,CRIMP, PLUG, ZINC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M24308/4-4Z | M24308/4 Series |
|---|---|---|
| Color | Natural | Natural |
| Connector Style | D-Sub | High Density, D-Sub |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Contact Finish | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Type | Signal | Signal |
| Current Rating (Amps) | 7.5 A | 5 - 7.5 A |
| Dielectric Material | Polyester, Glass Filled | Polyester, Glass Filled |
| Flange Feature | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Number of Positions | 37 | 15 - 104 |
| Number of Rows | 2 | 2 - 5 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Shell Material, Finish | Steel, Yellow Chromate Plated Zinc | Yellow Cadmium Plated, Steel, Yellow Chromate Plated Zinc |
| Shell Size, Connector Layout | 4 (DC, C) | 4 (DC, C) |
| Shell Size, Connector Layout | - | DE, E, B, DB |
| Shell Size, Connector Layout | - | 1 |
| Shell Size, Connector Layout | - | High Density |
| Shell Size, Connector Layout | - | 6 |
| Shell Size, Connector Layout | - | 3 |
| Termination | Crimp | Crimp |
| Wire Gauge [Max] | 26 AWG | 26 - 28 AWG |
| Wire Gauge [Min] | 20 AWG | 20 - 22 AWG |
M24308/4 Series
DSUB CONN,CRIMP, PLUG, CADMIUM
| Part | Contact Type | Dielectric Material | Contact Finish | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Current Rating (Amps) | Number of Rows | Contact Material | Shell Material, Finish | Operating Temperature [Min] | Operating Temperature [Max] | Wire Gauge [Max] | Wire Gauge [Min] | Termination | Number of Positions | Connector Type | Color | Material Flammability Rating | Flange Feature | Connector Style | Shell Size, Connector Layout | Shell Size, Connector Layout | Shell Size, Connector Layout [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Interconnect India M24308/4-11F | Signal | Polyester, Glass Filled | Gold | DE, E | 1 | High Density | 5 A | 3 | Copper Alloy | Steel, Yellow Cadmium Plated | -55 °C | 125 °C | 28 AWG | 22 AWG | Crimp | 15 | Male Pins, Plug | Natural | UL94 V-0 | Housing/Shell (Unthreaded) | D-Sub, High Density | |||
Amphenol Interconnect India M24308/4-16F | Signal | Polyester, Glass Filled | Gold | 5 A | 5 | Copper Alloy | Steel, Yellow Cadmium Plated | -55 °C | 125 °C | 28 AWG | 22 AWG | Crimp | 104 | Male Pins, Plug | Natural | UL94 V-0 | Housing/Shell (Unthreaded) | D-Sub, High Density | 6 | |||||
Amphenol Interconnect India M24308/4-4Z | Signal | Polyester, Glass Filled | Gold | 7.5 A | 2 | Copper Alloy | Steel, Yellow Chromate Plated Zinc | -55 °C | 125 °C | 26 AWG | 20 AWG | Crimp | 37 | Male Pins, Plug | Natural | UL94 V-0 | Housing/Shell (Unthreaded) | D-Sub | 4 (DC, C) | |||||
Amphenol Interconnect India M24308/4-13F | Signal | Polyester, Glass Filled | Gold | B, DB | 5 A | 3 | Copper Alloy | Steel, Yellow Cadmium Plated | -55 °C | 125 °C | 28 AWG | 22 AWG | Crimp | 44 | Male Pins, Plug | Natural | UL94 V-0 | Housing/Shell (Unthreaded) | D-Sub, High Density | 3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 51.32 | |
| 10 | $ 51.31 | |||
| 25 | $ 50.31 | |||
| 50 | $ 45.02 | |||
| 100 | $ 40.73 | |||
| Tray | 1 | $ 46.93 | ||
| 10 | $ 43.06 | |||
| 25 | $ 41.40 | |||
| 40 | $ 40.02 | |||
| 80 | $ 37.82 | |||
| 230 | $ 36.71 | |||
Description
General part information
M24308/4 Series
37 Position D-Sub Plug, Male Pins Connector
