M24308/4-16F

Active

Amphenol Interconnect India

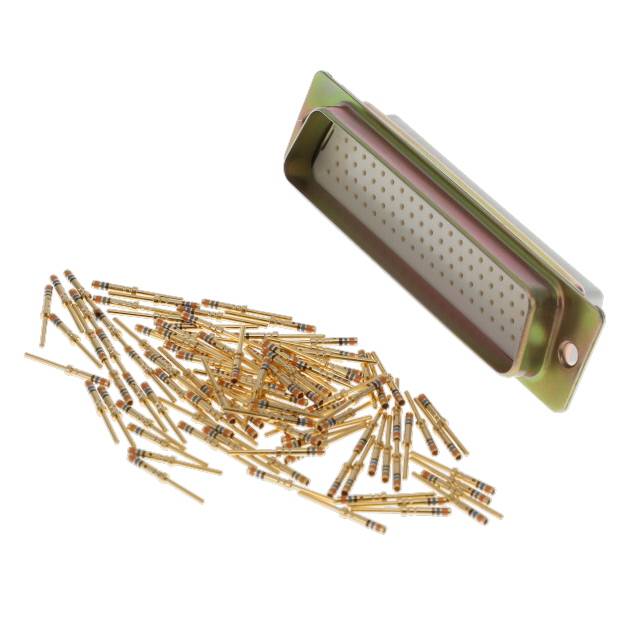

CONN D-SUB HD PLUG 104P PNL MNT

Search across all available documentation for this part.

Active

Amphenol Interconnect India

CONN D-SUB HD PLUG 104P PNL MNT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

104 Position D-Sub, High Density Plug, Male Pins Connector

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	M24308/4-16F	M24308/4 Series

Color	Natural	Natural
Connector Style	High Density, D-Sub	High Density, D-Sub
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Contact Type	Signal	Signal
Current Rating (Amps)	5 A	5 - 7.5 A
Dielectric Material	Polyester, Glass Filled	Polyester, Glass Filled
Flange Feature	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0	UL94 V-0
Number of Positions	104	15 - 104
Number of Rows	5	2 - 5
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Shell Material, Finish	Yellow Cadmium Plated, Steel	Yellow Cadmium Plated, Steel, Yellow Chromate Plated Zinc
Shell Size, Connector Layout	6	6
Shell Size, Connector Layout	-	DE, E, B, DB
Shell Size, Connector Layout	-	1
Shell Size, Connector Layout	-	High Density
Shell Size, Connector Layout	-	4 (DC, C)
Shell Size, Connector Layout	-	3
Termination	Crimp	Crimp
Wire Gauge [Max]	28 AWG	26 - 28 AWG
Wire Gauge [Min]	22 AWG	20 - 22 AWG

DSUB CONN,CRIMP, PLUG, CADMIUM
