Description
General part information
PE0201F Series

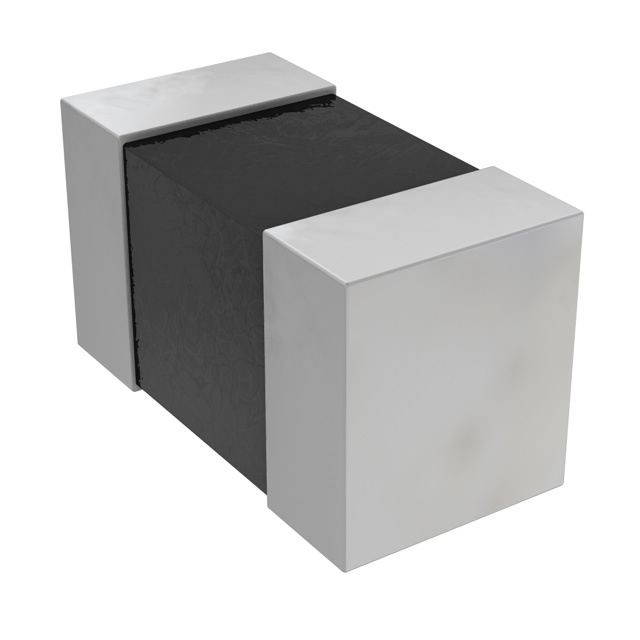

50 mOhms ±1% 0.05W, 1/20W Chip Resistor 0201 (0603 Metric) Automotive AEC-Q200, Current Sense Metal Film
Technical Specifications
Parameters and characteristics for this part
| Specification | PE0201FRJ070R05L |
|---|---|
| Composition | Metal Film |
| Features | Current Sense, Automotive AEC-Q200 |
| Height - Seated (Max) | 0.012 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0201 (0603 Metric) |
| Package Name | 0201 |
| Power (Watts) | 50 mW |
| Power (Watts) Options | 1/20W |
| Ratings | AEC-Q200 |
| Resistance | 0.05 Ohms |
| Size / Dimension Length | 0.024 in |
| Size / Dimension Width | 0.012 in |
| Temperature Coefficient | 350 ppm/°C |
| Tolerance | 1 % |
