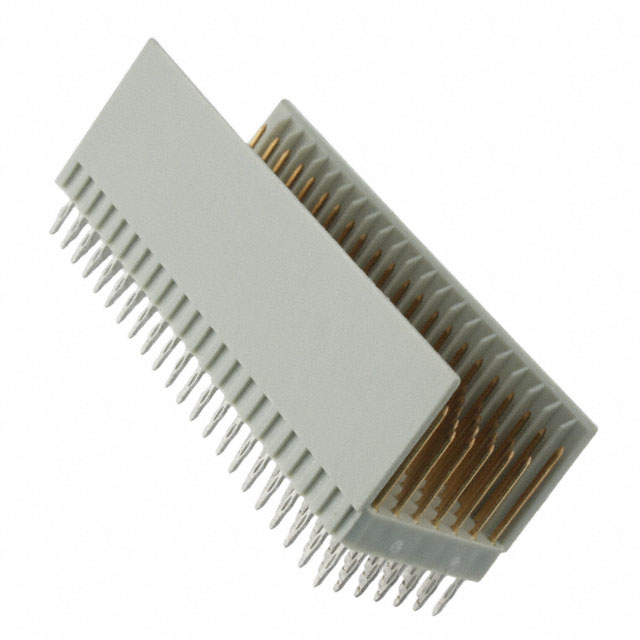

CP2-HB110-GA1-KR

Active

3M (TC)

CONN HARD METRIC HDR 110 POS 2MM PRESS FIT ST THRU-HOLE BOX

Search across all available documentation for this part.

Active

3M (TC)

CONN HARD METRIC HDR 110 POS 2MM PRESS FIT ST THRU-HOLE BOX

Technical Specifications

Parameters and characteristics for this part

Part	Connector Usage	Connector Style	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch [x]	Termination	Connector Type	Contact Finish	Mounting Type	Number of Positions Loaded
3M (TC) CP2-HB110-GA1-FJ	CompactPCI Hot Swap	B 22	154	10 Áin	0.25 Ám	2 5	85 °C	-40 °C	0.079 in	2 mm	Press-Fit	Header Male Pins	Gold	Through Hole	All
3M (TC) CP2-HB110-E1-KR	CompactPCI Hot Swap	B 22	110 positions	30 Áin	0.76 Ám	5	85 °C	-40 °C	0.079 in	2 mm	Press-Fit	Header Male Pins	Gold	Through Hole	All
3M (TC) CP2-HB110-GA4-G30	CompactPCI Hot Swap	B 22	154	30 Áin	0.76 Ám	2 5	85 °C	-40 °C	0.079 in	2 mm	Press-Fit	Header Male Pins	Gold	Through Hole	All
3M (TC) CP2-HB110-GE1-FJ	CompactPCI Hot Swap	B 22	154	10 Áin	0.25 Ám	2 5	85 °C	-40 °C	0.079 in	2 mm	Press-Fit	Header Male Pins	Gold	Through Hole	All
3M (TC) CP2-HB110-GA4-KV	CompactPCI Hot Swap	B 22	154	30 Áin	0.76 Ám	2 5	85 °C	-40 °C	0.079 in	2 mm	Press-Fit	Header Male Pins	Gold	Through Hole	All
3M (TC) CP2-HB110-GA1-KR	CompactPCI Hot Swap	B 22	154	30 Áin	0.76 Ám	2 5	85 °C	-40 °C	0.079 in	2 mm	Press-Fit	Header Male Pins	Gold	Through Hole	All
3M (TC) CP2-HB110-GE1-KR	CompactPCI Hot Swap	B 22	154	30 Áin	0.76 Ám	2 5	85 °C	-40 °C	0.079 in	2 mm	Press-Fit	Header Male Pins	Gold	Through Hole	All

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

154 (110 + 44 Ground) Position Header, Male Pins Connector 0.079" (2.00mm) Through Hole
