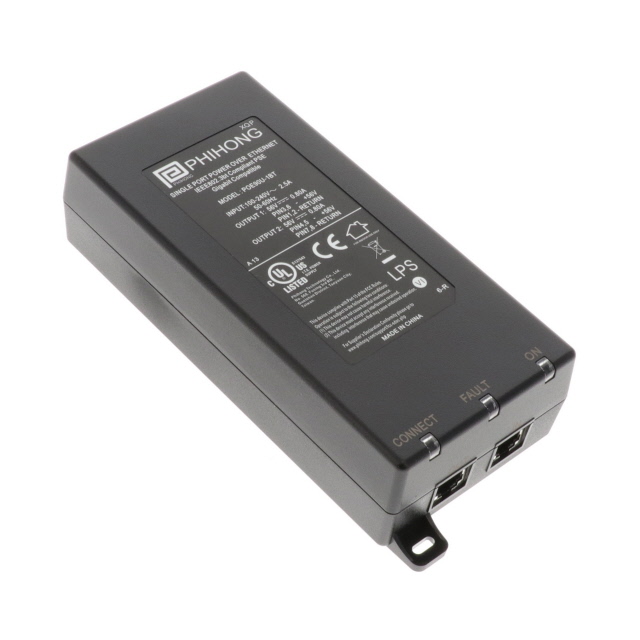

Specification	POE90U-1BT6-R

Approval Agency	cULus, IEC
Compliance	IEEE802.3bt
Current - Output	1.6 A
Efficiency	Level VI
Features	SCP, OVP, OCP
Input Connector	IEC 320-C14 (Power), RJ45 (Data)
Mounting Type	Desktop
Number of Ports	1
Operating Temperature (Max)	40 °C
Operating Temperature (Min)	-20 °C
Output Connector	Power), RJ45 (Data
Power (Watts) - Per Port	90 W
Size / Dimension Height	1.72 in
Size / Dimension Length	6.54 in
Size / Dimension Width	3.15 in
Standard Number	62368-1, 60950-1
Type	Midspan Injector
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	90 V
Voltage - Output	56 V

POE90U Series

Part	Output Connector	Input Connector	Size / Dimension Length	Size / Dimension Width	Size / Dimension Height	Approval Agency	Compliance	Features	Number of Ports	Type	Mounting Type	Standard Number	Operating Temperature (Max)	Operating Temperature (Min)	Efficiency	Voltage - Output	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Current - Output	Power (Watts) - Per Port	Efficiency
Phihong USA POE90U-1BT-2-R	Power) RJ45 (Data	IEC 320-C14 (Power) RJ45 (Data)	6.54 in	3.15 in	1.72 in	AS/NZS CCC cULus IEC PSE	IEEE802.3bt	OCP OVP SCP	1	Midspan Injector	Desktop	55022 60950-1 GB/T9254-2008 GB17625.1-2012 GB4943.1-2011	40 °C	-20 °C	Level VI	56 V	90 V	264 V	1.6 A	90 W
Phihong USA POE90U-1BT	Power) RJ45 (Data	IEC 320-C8 (Power) RJ45 (Data)	6.54 in	3.15 in	1.72 in	CE cULus	IEEE802.3bt	OCP OVP SCP	1	Midspan Injector	Desktop		40 °C	-20 °C		56 V	90 V	264 V	1.6 A	90 W	75 %
Phihong USA POE90U-1BT-5-R	Power) RJ45 (Data	IEC 320-C14 (Power) RJ45 (Data)	6.54 in	3.15 in	1.72 in	cULus IEC	IEEE802.3bt	OCP OVP SCP	1	Midspan Injector	Desktop	60950-1	40 °C	-20 °C	Level VI	56 V	90 V	264 V	1.6 A	90 W
Phihong USA POE90U-560-X-R	Power) RJ45 (Data	IEC 320-C14 (Power) RJ45 (Data)	6.54 in	3.15 in	1.72 in	cULus IEC		OCP OVP SCP	1	Midspan Injector	Desktop	60950-1	60 °C	-20 °C		56 V	90 V	264 V	1.6 A	90 W	75 %
Phihong USA POE90U-1BT-N6-R	Power) RJ45 (Data	IEC 320-C14 (Power) RJ45 (Data)	6.54 in	3.15 in	2.02 in	cULus IEC	IEEE802.3bt	OCP OVP SCP	1	Midspan Injector	Desktop	60950-1	40 °C	-20 °C		56 V	90 V	264 V	1.6 A	90 W	75 %
Phihong USA POE90U-1BT6-R	Power) RJ45 (Data	IEC 320-C14 (Power) RJ45 (Data)	6.54 in	3.15 in	1.72 in	cULus IEC	IEEE802.3bt	OCP OVP SCP	1	Midspan Injector	Desktop	60950-1 62368-1	40 °C	-20 °C	Level VI	56 V	90 V	264 V	1.6 A	90 W
Phihong USA POE90U-560-2-R	Power) RJ45 (Data	IEC 320-C14 (Power) RJ45 (Data)	6.54 in	3.15 in	1.72 in	cULus IEC		OCP OVP SCP	1	Midspan Injector	Desktop	60950-1	60 °C	-20 °C		56 V	90 V	264 V	1.6 A	90 W	75 %
Phihong USA POE90U-1BT-X-R	Power) RJ45 (Data	IEC 320-C14 (Power) RJ45 (Data)	6.54 in	3.15 in	1.72 in	cULus IEC	IEEE802.3bt	OCP OVP SCP	1	Midspan Injector	Desktop	60950-1	40 °C	-20 °C	Level VI	56 V	90 V	264 V	1.6 A	90 W
Phihong USA POE90U-560-5-R	Power) RJ45 (Data	IEC 320-C14 (Power) RJ45 (Data)	6.54 in	3.15 in	1.72 in	cULus IEC		OCP OVP SCP	1	Midspan Injector	Desktop	60950-1	60 °C	-20 °C		56 V	90 V	264 V	1.6 A	90 W	75 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

POE90U-1BT6-R | Datasheet
