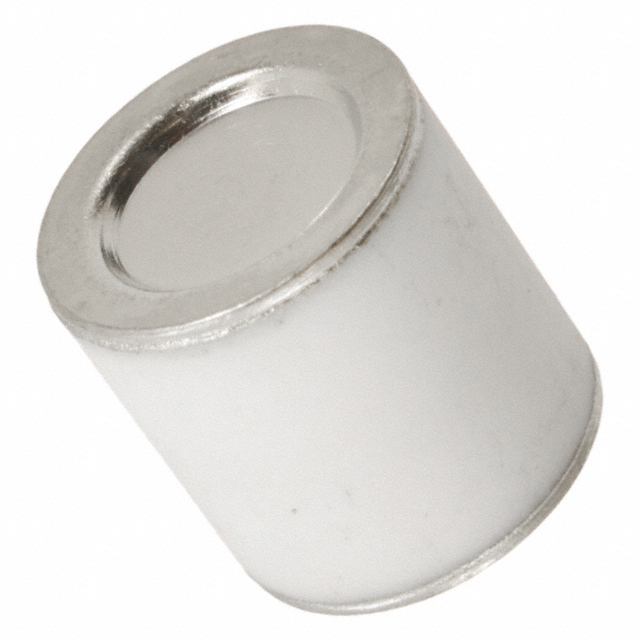

2061-80-ALF

Active

Bourns Inc.

GAS DISCHARGE TUBE (GDT), HIGH-CURRENT, 2061 SERIES, 800 V, SMD, 40 KA, 1.5 KV

Search across all available documentation for this part.

Active

Bourns Inc.

GAS DISCHARGE TUBE (GDT), HIGH-CURRENT, 2061 SERIES, 800 V, SMD, 40 KA, 1.5 KV

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Gas Discharge Tube 800 V 40000A (40kA) ±20% 2 Pole User Defined

Technical documentation and resources

Specification	2061-80-ALF	2061 Series

Fail Short	False	False
Impulse Discharge Current (8/20µs)	40000 A	40000 A
Impulse Discharge Current (8/20µs)	40 kA	40 kA
Mounting Type	User Defined	User Defined
Number of Poles	2	2
Package / Case	Cylinder No Lead	Cylinder No Lead
Tolerance	20 %	20 %
Voltage - DC Spark Over (Nom)	800 V	230 - 800 V

Part	Tolerance	Number of Poles	Package / Case	Impulse Discharge Current (8/20µs)	Impulse Discharge Current (8/20µs)	Voltage - DC Spark Over (Nom)	Mounting Type
Bourns Inc. 2061-30-ALF	20 %	2	Cylinder No Lead	40000 A	40 kA	300 V	User Defined
Bourns Inc. 2061-70-ALF	20 %	2	Cylinder No Lead	40000 A	40 kA	700 V	User Defined
Bourns Inc. 2061-60-ALF	20 %	2	Cylinder No Lead	40000 A	40 kA	600 V	User Defined
Bourns Inc. 2061-42-ALF	20 %	2	Cylinder No Lead	40000 A	40 kA	420 V	User Defined
Bourns Inc. 2061-80-ALF	20 %	2	Cylinder No Lead	40000 A	40 kA	800 V	User Defined
Bourns Inc. 2061-23-ALF	20 %	2	Cylinder No Lead	40000 A	40 kA	230 V	User Defined
Bourns Inc. 2061-25-ALF	20 %	2	Cylinder No Lead	40000 A	40 kA	250 V	User Defined
