142270-1

Active

TE Connectivity AMP Connectors

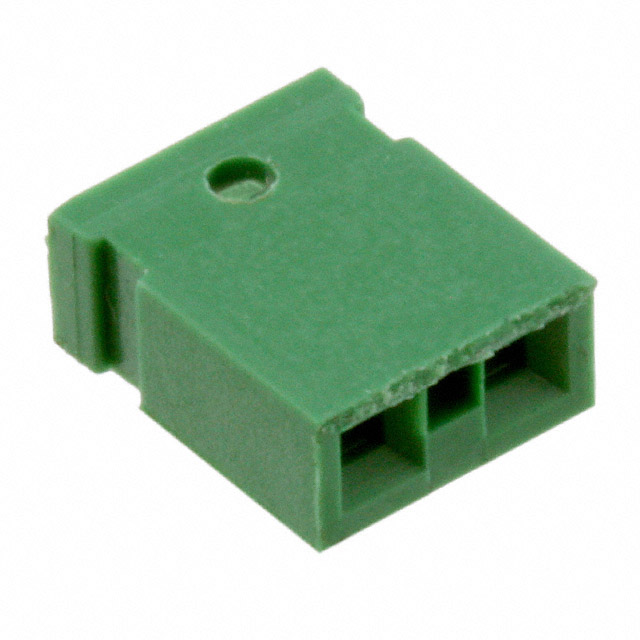

SHUNT MOD.IV OPEN-TOP 2POS

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

SHUNT MOD.IV OPEN-TOP 2POS

Technical Specifications

Parameters and characteristics for this part

Specification	142270-1

Color	Green
Contact Finish	Gold
Contact Finish Thickness	16 µin
Contact Finish Thickness	0.41 µm
Current Rating (Amps)	3 A
Gender	Female Sockets
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Number of Positions or Pins (Grid) [custom]	1 x 2
Number of Positions or Pins (Grid) [custom]	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Type	Open Top

SHUNT MOD.IV OPEN-TOP 2POS

Part	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Current Rating (Amps)	Color	Type	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Contact Finish	Housing Material	Material Flammability Rating	Gender
TE Connectivity AMP Connectors 142270-1	16 µin	0.41 µm	2.54 mm	0.1 in	3 A	Green	Open Top	1 x 2	2	Gold	Polybutylene Terephthalate (PBT), Glass Filled	UL94 V-0	Female Sockets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (1 x 2) Position Shunt Connector Green Open Top 0.100" (2.54mm) Gold
