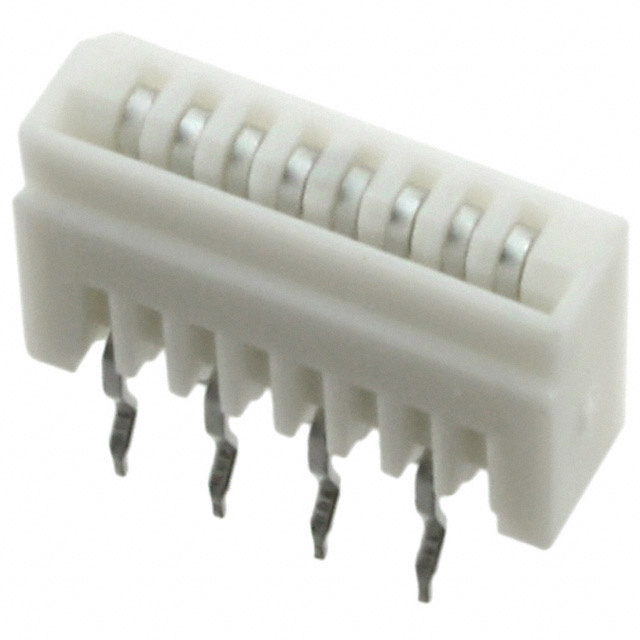

84984-8
ActiveTE Connectivity AMP Connectors
CONN FFC FPC VERT 8POS 1MM PCB
Deep-Dive with AI
Search across all available documentation for this part.
84984-8
ActiveTE Connectivity AMP Connectors
CONN FFC FPC VERT 8POS 1MM PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 84984-8 | 84984 Series |
|---|---|---|
| Cable End Type | Straight | Straight |
| Connector/Contact Type | Contacts, Vertical - 1 Sided | Contacts, Vertical - 1 Sided |
| Contact Finish | Tin | Tin |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| FFC, FCB Thickness | 0.3 mm | 0.3 mm |
| Flat Flex Type | FPC, FFC | FPC, FFC |
| Housing Color | White | White |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 8 | 6 - 29 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -20 C | -20 C |
| Pitch [x] | 0.039 in | 0.039 in |
| Pitch [x] | 1 mm | 1 mm |
| Termination | Kinked Pin | Kinked Pin |
| Voltage Rating | 125 VDC | 125 VDC |
84984 Series
CONN FFC FPC VERT 8POS 1MM PCB
| Part | Connector/Contact Type | Pitch [x] | Pitch [x] | Housing Color | Mounting Type | Cable End Type | Contact Material | Number of Positions | Voltage Rating | Housing Material | Contact Finish | Flat Flex Type | Operating Temperature [Max] | Operating Temperature [Min] | Termination | FFC, FCB Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 84984-8 | Contacts, Vertical - 1 Sided | 0.039 in | 1 mm | White | Through Hole | Straight | Phosphor Bronze | 8 | 125 VDC | Polybutylene Terephthalate (PBT), Glass Filled | Tin | FFC, FPC | 85 °C | -20 C | Kinked Pin | 0.3 mm |
TE Connectivity AMP Connectors 2-84984-6 | Contacts, Vertical - 1 Sided | 0.039 in | 1 mm | White | Through Hole | Straight | Phosphor Bronze | 26 | 125 VDC | Polybutylene Terephthalate (PBT), Glass Filled | Tin | FFC, FPC | 85 °C | -20 C | Kinked Pin | 0.3 mm |
TE Connectivity AMP Connectors 1-84984-0 | Contacts, Vertical - 1 Sided | 0.039 in | 1 mm | White | Through Hole | Straight | Phosphor Bronze | 10 | 125 VDC | Polybutylene Terephthalate (PBT), Glass Filled | Tin | FFC, FPC | 85 °C | -20 C | Kinked Pin | 0.3 mm |
TE Connectivity AMP Connectors 2-84984-0 | Contacts, Vertical - 1 Sided | 0.039 in | 1 mm | White | Through Hole | Straight | Phosphor Bronze | 20 | 125 VDC | Polybutylene Terephthalate (PBT), Glass Filled | Tin | FFC, FPC | 85 °C | -20 C | Kinked Pin | 0.3 mm |
TE Connectivity AMP Connectors 1-84984-4 | Contacts, Vertical - 1 Sided | 0.039 in | 1 mm | White | Through Hole | Straight | Phosphor Bronze | 14 | 125 VDC | Polybutylene Terephthalate (PBT), Glass Filled | Tin | FFC, FPC | 85 °C | -20 C | Kinked Pin | 0.3 mm |
TE Connectivity AMP Connectors 2-84984-4 | Contacts, Vertical - 1 Sided | 0.039 in | 1 mm | White | Through Hole | Straight | Phosphor Bronze | 24 | 125 VDC | Polybutylene Terephthalate (PBT), Glass Filled | Tin | FFC, FPC | 85 °C | -20 C | Kinked Pin | 0.3 mm |
TE Connectivity AMP Connectors 2-84984-9 | Contacts, Vertical - 1 Sided | 0.039 in | 1 mm | White | Through Hole | Straight | Phosphor Bronze | 29 | 125 VDC | Polybutylene Terephthalate (PBT), Glass Filled | Tin | FFC, FPC | 85 °C | -20 C | Kinked Pin | 0.3 mm |
TE Connectivity AMP Connectors 84984-6 | Contacts, Vertical - 1 Sided | 0.039 in | 1 mm | White | Through Hole | Straight | Phosphor Bronze | 6 | 125 VDC | Polybutylene Terephthalate (PBT), Glass Filled | Tin | FFC, FPC | 85 °C | -20 C | Kinked Pin | 0.3 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 0.49 | |
| 10 | $ 0.46 | |||
| 47 | $ 0.46 | |||
| 94 | $ 0.44 | |||
| 141 | $ 0.38 | |||
| 282 | $ 0.34 | |||
| 517 | $ 0.33 | |||
| 1034 | $ 0.29 | |||
| 2538 | $ 0.28 | |||
Description
General part information
84984 Series
8 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.039" (1.00mm) Through Hole
