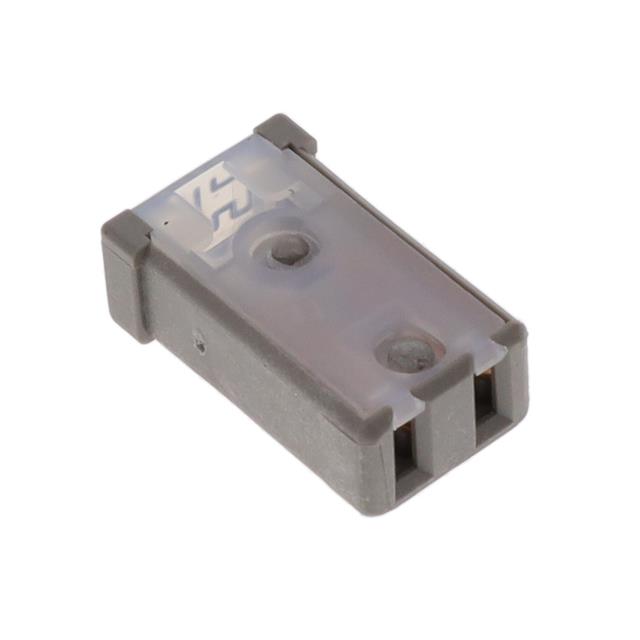

Specification	0695015.PXP-DS

Breaking Capacity	1 kA
Color	Gray
Current Rating	15 A
DC Cold Resistance	0.0048 Ohms
Fuse Type	Board Mount (Cartridge Style Excluded)
Melting I²t	300
Mounting Type	Requires Holder
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Package / Case	Auto Link
Response Time	Slow Blow
Size / Dimension Height	0.689 in
Size / Dimension Length	0.421 in
Size / Dimension Width	0.244 in
Voltage Rating - DC	32 V

695 Series

Fuse - MCase+ 32VDC Slotted 50A

Part	DC Cold Resistance	Melting I²t	Current Rating	Response Time	Size / Dimension Length	Size / Dimension Width	Size / Dimension Height	Mounting Type	Package / Case	Operating Temperature (Max)	Operating Temperature (Min)	Color	Breaking Capacity	Voltage Rating - DC	Fuse Type	Approval Agency
LITTELFUSE 0695015.PXP-DS	0.0048 Ohms	300	15 A	Slow Blow	0.421 in	0.244 in	0.689 in	Requires Holder	Auto Link	125 °C	-40 °C	Gray	1 kA	32 V	Board Mount (Cartridge Style Excluded)
LITTELFUSE 0695050.PXPS	0.77 mOhms	3829	50 A	Slow Blow	0.42 in	0.59 in	0.24 in	Surface Mount	Module	125 °C	-40 °C	Red	1 kA	32 V	Cartridge	ISO8820-4 SAE 2741
LITTELFUSE 0695040.PX4		2950	40 A		0.421 in	0.244 in	0.689 in	Requires Holder	Auto Link	125 °C	-40 °C	Green	1 kA	32 V	Automotive
