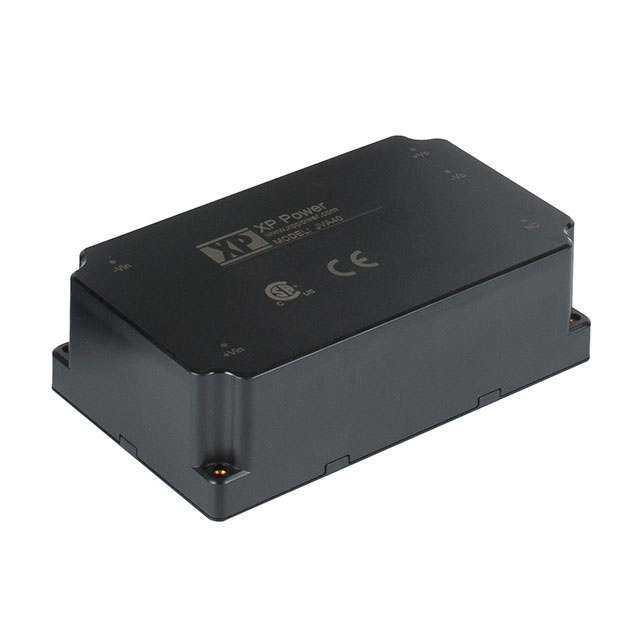

JVA401500S12

Obsolete

XP POWER

DC DC CONVERTER 12V 40W

Search across all available documentation for this part.

Obsolete

XP POWER

DC DC CONVERTER 12V 40W

Technical Specifications

Parameters and characteristics for this part

Part	Efficiency	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Mounting Type	Number of Outputs	Voltage - Isolation	Applications	Current - Output (Max) [Max]	Type	Package / Case	Power (Watts)	Features	Voltage - Input (Min) [Min]	Voltage - Output 1	Voltage - Input (Max) [Max]	Approval Agency	DC Voltage - Input (Min) [Min]	Input Type	DC Voltage - Input (Max) [Max]
XP POWER JVA401500S24	72 %	1.57 "	40 mm	125 mm	4.92 in	75 mm	2.95 in	Through Hole	1	4000 V	ITE (Commercial)	1.67 A	Isolated Module	5-DIP Module	40 W	Remote On/Off	200 V	24 V	1500 V
XP POWER JVA401500S15-DF	72 %	5.43 "	137.9 mm	146.8 mm	5.78 "	137.9 mm	5.43 in		1	4000 V	ITE (Commercial)	2.67 A			40 W	Remote On/Off		15 V		UL	200 V	DC	1500 V
XP POWER JVA401500S24-DF	72 %	5.43 "	137.9 mm	146.8 mm	5.78 "	137.9 mm	5.43 in		1	4000 V	ITE (Commercial)	1.67 A			40 W	Remote On/Off		24 V		UL	200 V	DC	1500 V
XP POWER JVA401500S12	72 %	1.57 "	40 mm	125 mm	4.92 in	75 mm	2.95 in	Through Hole	1	4000 V	ITE (Commercial)	3.33 A	Isolated Module	5-DIP Module	40 W	Remote On/Off	200 V	12 V	1500 V
XP POWER JVA401500S24-D	72 %	1.92 "	48.8 mm	128.8 mm	5.07 in	101.9 mm	4.01 in		1	4000 V	ITE (Commercial)	1.67 A			40 W	Remote On/Off		24 V		UL	200 V	DC	1500 V
XP POWER JVA401500S15-D	72 %	1.92 "	48.8 mm	128.8 mm	5.07 in	101.9 mm	4.01 in		1	4000 V	ITE (Commercial)	2.67 A			40 W	Remote On/Off		15 V		UL	200 V	DC	1500 V
XP POWER JVA401500S12-DF	72 %	5.43 "	137.9 mm	146.8 mm	5.78 "	137.9 mm	5.43 in		1	4000 V	ITE (Commercial)	3.33 A			40 W	Remote On/Off		12 V		UL	200 V	DC	1500 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 12V 3.33A 200V - 1500V Input
