ER2152-000
ActiveTE Connectivity Raychem Cable Protection
TMS-CT-50M-3/8-OUT-0 METER
Deep-Dive with AI
Search across all available documentation for this part.
ER2152-000
ActiveTE Connectivity Raychem Cable Protection
TMS-CT-50M-3/8-OUT-0 METER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ER2152-000 |
|---|---|
| Color | Black |
| Inner Diameter - Recovered | 3.18 mm |
| Inner Diameter - Recovered [diameter] | 0.125 in |
| Inner Diameter - Supplied [diameter] | 0.375 in |
| Inner Diameter - Supplied [diameter] | 9.53 mm |
| Length | 164 ft |
| Length | 50 m |
| Material | Polyolefin (PO), Irradiated |
| Operating Temperature [Max] | 135 °C |
| Operating Temperature [Min] | -55 °C |
| Recovered Wall Thickness | 0.61 mm |
| Recovered Wall Thickness | 0.024 in |
| Shrinkage Ratio [Max] | 3 |
| Shrinkage Ratio [Min] | 1 |
| Type | Tubing, Flexible |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 13.82 | |
| 5 | $ 13.20 | |||
| 10 | $ 10.05 | |||
| 25 | $ 9.43 | |||
| 50 | $ 8.80 | |||
| 100 | $ 8.36 | |||
Description
General part information
ER2152 Series

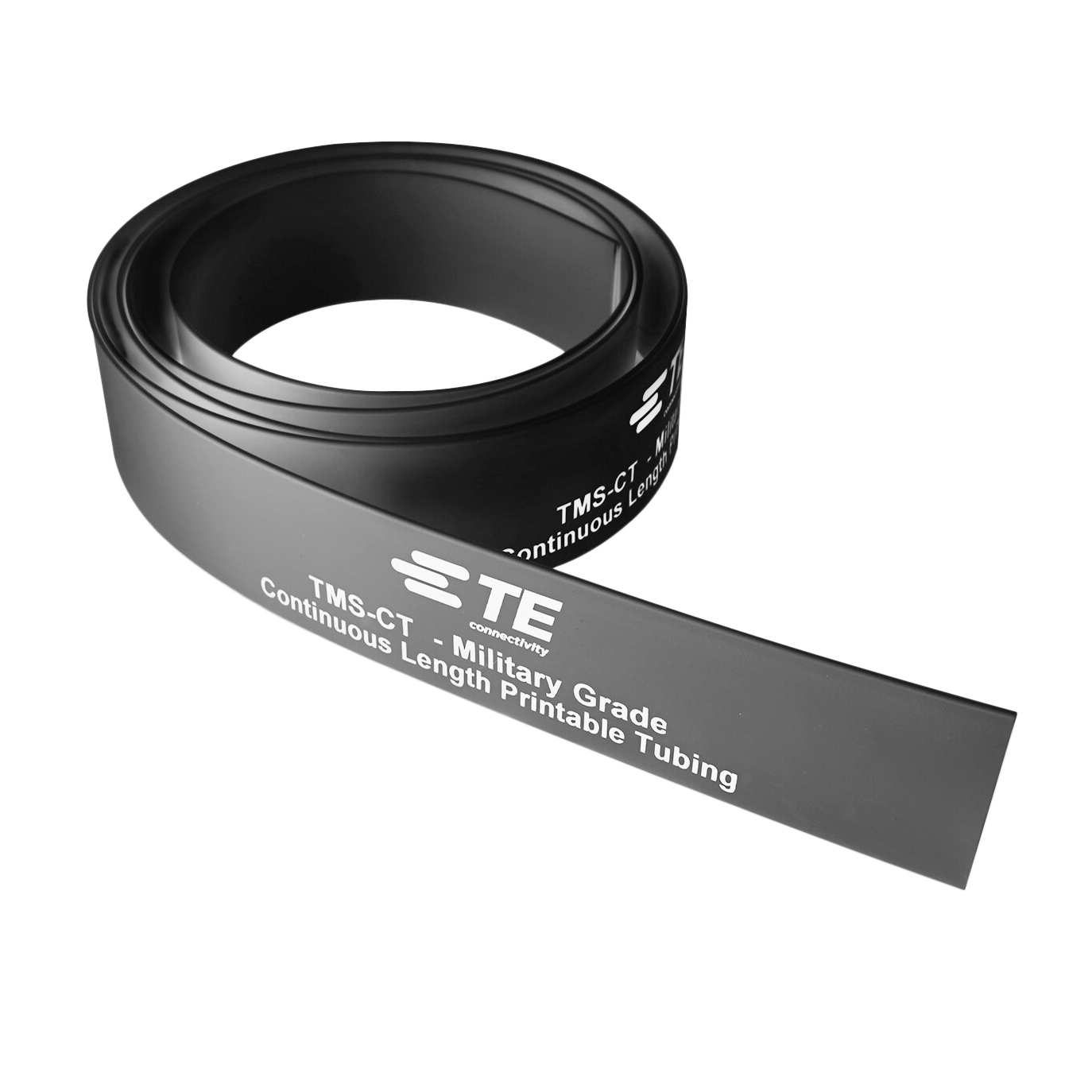

Heat Shrink Tubing, Flexible 0.375" (9.53mm) 3 to 1 Black 164.0' (50.0m)
Documents
Technical documentation and resources
No documents available
