102142-1
ActiveTE Connectivity AMP Connectors

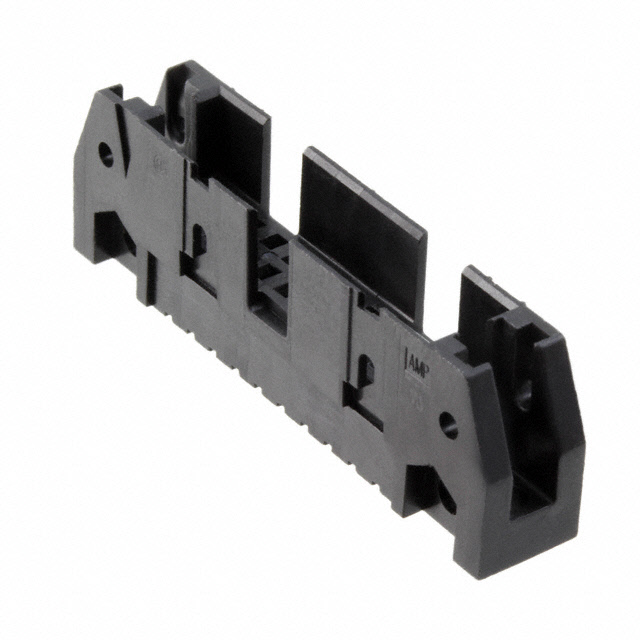

CONN HDR HSG 20POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
102142-1
ActiveTE Connectivity AMP Connectors
CONN HDR HSG 20POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 102142-1 | 102142 Series |
|---|---|---|
| Color | Black | Black |
| Connector Type | Header | Header |
| Contact Termination | Crimp | Crimp |
| Contact Type | Male Pin | Male Pin |
| Features | Polarizing Key | Polarizing Key |
| Insulation Material | Thermoplastic | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) - End, Left | Free Hanging (In-Line) - End, Left |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 20 | 20 - 50 |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
| Row Spacing | 2.54 mm | 2.54 mm |
| Row Spacing [x] | 0.1 in | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 2.02 | |
| 10 | $ 1.68 | |||
| 25 | $ 1.55 | |||
| 50 | $ 1.47 | |||
| 100 | $ 1.42 | |||
102142 Series
CONN HDR HSG 26POS 2.54MM
| Part | Contact Termination | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Connector Type | Pitch [x] | Pitch [x] | Row Spacing [x] | Row Spacing | Color | Features | Insulation Material | Number of Rows | Note | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 102142-2 | Crimp | Male Pin | -65 ░C | 105 ░C | Free Hanging (In-Line) - End, Left | Header | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | Black | Polarizing Key | Thermoplastic | 2 | Contacts Not Included | 26 |
TE Connectivity AMP Connectors 1-102142-0 | Crimp | Male Pin | -65 ░C | 105 ░C | Free Hanging (In-Line) - End, Left | Header | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | Black | Polarizing Key | Thermoplastic | 2 | Contacts Not Included | 24 |
TE Connectivity AMP Connectors 102142-1 | Crimp | Male Pin | -65 ░C | 105 ░C | Free Hanging (In-Line) - End, Left | Header | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | Black | Polarizing Key | Thermoplastic | 2 | Contacts Not Included | 20 |
TE Connectivity AMP Connectors 102142-5 | Crimp | Male Pin | -65 ░C | 105 ░C | Free Hanging (In-Line) - End, Left | Header | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | Black | Polarizing Key | Thermoplastic | 2 | Contacts Not Included | 50 |
Description
General part information
102142 Series
20 Rectangular Connectors - Housings Header Black 0.100" (2.54mm)
