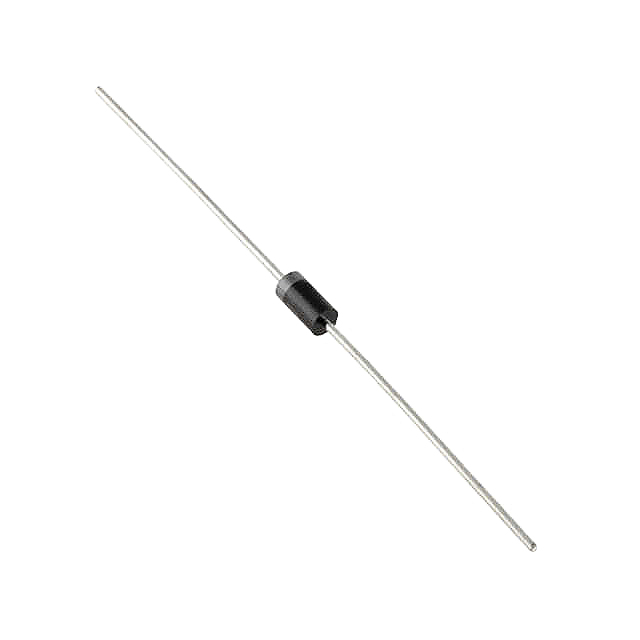

1.5KE300CA

Active

Rectron USA

TVS DIODE 300VWM 430VC 1.5KE

Search across all available documentation for this part.

Active

Rectron USA

TVS DIODE 300VWM 430VC 1.5KE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1.5KE300CA	1.5KE Series

Applications	General Purpose	General Purpose
Bidirectional Channels [custom]	1	1
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	Axial, DO-27, DO-201AA	Axial, DO-27, DO-201AA
Power - Peak Pulse	1.5 kW	1.5 kW
Power - Peak Pulse	1500 W	1500 W
Power Line Protection	False	False
Supplier Device Package	1.5KE	1.5KE
Type	Zener	Zener
Unidirectional Channels	-	1
Voltage - Clamping (Max) @ Ipp	430 V	430 V
Voltage - Clamping (Max) @ Ipp	-	64.8 V
Voltage - Reverse Standoff (Typ)	300 V	47 - 300 V

TVS DIODE 300VWM 430VC 1.5KE

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Reverse Standoff (Typ)	Supplier Device Package	Power - Peak Pulse	Power - Peak Pulse	Applications	Bidirectional Channels [custom]	Power Line Protection	Type	Mounting Type	Package / Case	Voltage - Clamping (Max) @ Ipp	Voltage - Clamping (Max) @ Ipp [Max]	Unidirectional Channels [custom]
Rectron USA 1.5KE300CA	-55 °C	150 °C	300 V	1.5KE	1.5 kW	1500 W	General Purpose	1		Zener	Through Hole	Axial, DO-201AA, DO-27	430 V
Rectron USA 1.5KE47A	-55 °C	150 °C	47 V	1.5KE	1.5 kW	1500 W	General Purpose			Zener	Through Hole	Axial, DO-201AA, DO-27		64.8 V	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

430V Clamp Ipp Tvs Diode Through Hole 1.5KE
