Q5-2X-3/4-01-SS25M

Active

Qualtek

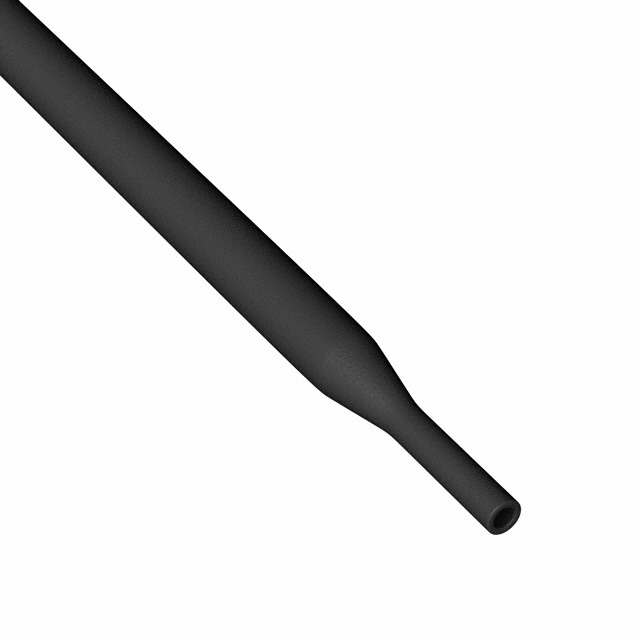

HEATSHRINK 0.752" X 82' BLACK

Search across all available documentation for this part.

Active

Qualtek

HEATSHRINK 0.752" X 82' BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	Q5-2X-3/4-01-SS25M

Color	Black
Features	Self Extinguishing, Adhesive Lined
Inner Diameter - Recovered [diameter]	0.375 in
Inner Diameter - Recovered [diameter]	9.53 mm
Inner Diameter - Supplied [diameter]	19.1 mm
Inner Diameter - Supplied [diameter]	0.752 in
Length	25 m
Length	82 ft
Material	Polyolefin (PO)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-45 °C
Recovered Wall Thickness	0.9 mm
Recovered Wall Thickness	0.036 in
Shelf Life	60 Months
Shrink Temperature	100 °C
Shrinkage Ratio	2 to 1
Storage/Refrigeration Temperature [Max]	40 °C
Storage/Refrigeration Temperature [Min]	-10 °C, -50 °F
Type	Tubing, Flexible

Part	Color	Features	Length [x]	Length [x]	Type	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Recovered Wall Thickness	Recovered Wall Thickness	Shelf Life	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Shrink Temperature	Shrinkage Ratio	Material	Length	Length
Qualtek Q5-2X-3/4-01-QB48IN-5	Black	Adhesive Lined Self Extinguishing	1.22 m	4 ft	Tubing Flexible	-50 °F -10 °C	40 °C	125 °C	-45 °C	0.9 mm	0.036 in	60 Months	19.1 mm	0.752 in	0.375 in	9.53 mm	100 °C	2 to 1	Polyolefin (PO)
Qualtek Q5-2X-3/4-01-SS25M	Black	Adhesive Lined Self Extinguishing			Tubing Flexible	-50 °F -10 °C	40 °C	125 °C	-45 °C	0.9 mm	0.036 in	60 Months	19.1 mm	0.752 in	0.375 in	9.53 mm	100 °C	2 to 1	Polyolefin (PO)	25 m	82 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5	$ 76.71

General part information

Heat Shrink Tubing, Flexible 0.752" (19.10mm) 2 to 1 Black 82.0' (25.0m)
