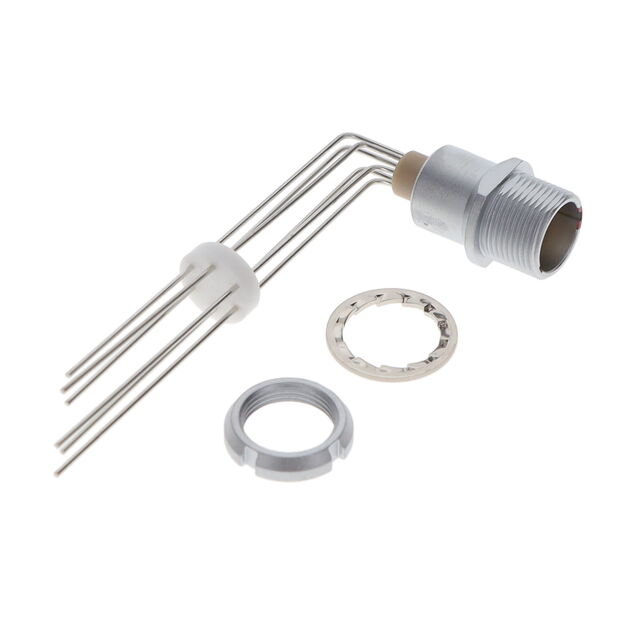

EEF.0B.306.CLV

Active

LEMO

CONN RCPT FMALE 6POS GOLD SOLDER

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 6POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	EEF.0B.306.CLV

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 Áin
Contact Finish Thickness - Mating	1.5 Ám
Contact Material	Bronze
Current Rating (Amps)	2.5 A
Fastening Type	Push-Pull
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	6
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	F
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	306
Shielding	Shielded
Termination	Solder

CONN RCPT FMALE 6POS GOLD SOLDER

Part	Fastening Type	Mounting Feature	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Insert Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Primary Material	Shell Finish	Color	Contact Material	Ingress Protection	Contact Finish - Mating	Shell Size - Insert	Mounting Type	Orientation	Termination	Current Rating (Amps)	Number of Positions	Shell Material
LEMO EEF.0B.306.CLV	Push-Pull	Bulkhead - Front Side Nut	Receptacle, Female Sockets	-55 °C	250 °C	Shielded	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	UL94 V-0	Metal	Chrome	Silver	Bronze	IP50	Gold	306	Panel Mount, Right Angle, Through Hole	F	Solder	2.5 A	6	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle, Female Sockets Solder
