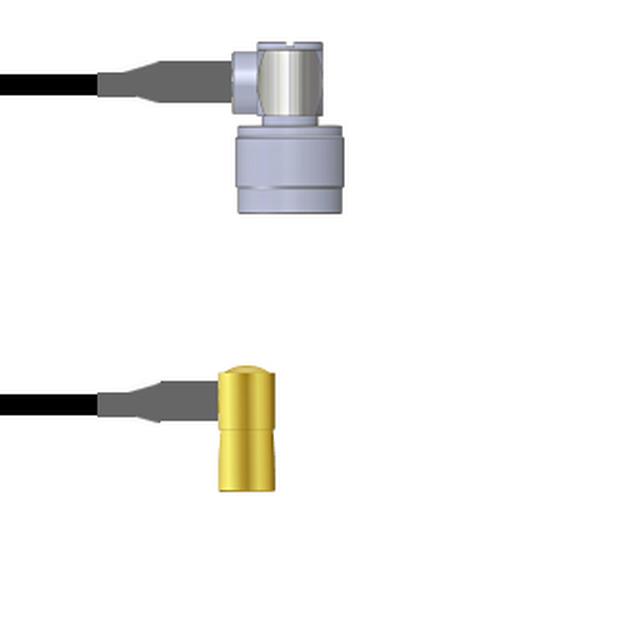

Q-2C03S0003003i

Active

Amphenol Custom Cable

CBL ASSY SMB-NTYPE PLUG-PLUG 3"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2C03S0003003i

Active

Amphenol Custom Cable

CBL ASSY SMB-NTYPE PLUG-PLUG 3"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2C03S0003003i

1st Connector	Right Angle, SMB Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	3 in
Length	76.2 mm
Overall Impedance	50 Ohms
Style	SMB to N-Type

Q-2C03S0 Series

Part	Frequency - Max [Max]	Color	2nd Connector	Overall Impedance	Cable Type	1st Connector	Features	2nd Connector Mounting Type	Length	Length	Length	2nd Contact Gender	Style	1st Connector Mounting Type	1st Contact Gender	Length [x]	Length [x]
Amphenol Custom Cable Q-2C03S00051.5M	4 GHz	Copper	N-Type Plug Right Angle	50 Ohms	RG-316	Right Angle SMB Plug	Shielded	Free Hanging (In-Line)	59.1 in	4.9 ft	1.5 m	Male	SMB to N-Type	Free Hanging (In-Line)	Female
Amphenol Custom Cable Q-2C03S0005.25M	4 GHz	Copper	N-Type Plug Right Angle	50 Ohms	RG-316	Right Angle SMB Plug	Shielded	Free Hanging (In-Line)				Male	SMB to N-Type	Free Hanging (In-Line)	Female	9.843 "	250 mm
Amphenol Custom Cable Q-2C03S00052.5M	4 GHz	Copper	N-Type Plug Right Angle	50 Ohms	RG-316	Right Angle SMB Plug	Shielded	Free Hanging (In-Line)	98.4 in	8.2 '	2.5 m	Male	SMB to N-Type	Free Hanging (In-Line)	Female
Amphenol Custom Cable Q-2C03S0005.75M	4 GHz	Copper	N-Type Plug Right Angle	50 Ohms	RG-316	Right Angle SMB Plug	Shielded	Free Hanging (In-Line)	29.53 "		750 mm	Male	SMB to N-Type	Free Hanging (In-Line)	Female
Amphenol Custom Cable Q-2C03S0005108i	4 GHz	Copper	N-Type Plug Right Angle	50 Ohms	RG-316	Right Angle SMB Plug	Shielded	Free Hanging (In-Line)	108 in	9 ft	2.7 m	Male	SMB to N-Type	Free Hanging (In-Line)	Female
Amphenol Custom Cable Q-2C03S0003003i	4 GHz	Black	N-Type Plug Right Angle	50 Ohms	RG-174	Right Angle SMB Plug	Shielded	Free Hanging (In-Line)	3 in		76.2 mm	Male	SMB to N-Type	Free Hanging (In-Line)	Female
Amphenol Custom Cable Q-2C03S0003002M	4 GHz	Black	N-Type Plug Right Angle	50 Ohms	RG-174	Right Angle SMB Plug	Shielded	Free Hanging (In-Line)	78.7 in	6.6 ft	2 m	Male	SMB to N-Type	Free Hanging (In-Line)	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 83.66
		25	$ 82.04
		50	$ 80.42
		100	$ 78.80
		250	$ 77.18

Description

General part information

Q-2C03S0 Series

Cable Assembly Coaxial SMB to N-Type RG-174 3.000" (76.20mm)

Documents

Technical documentation and resources

No documents available
