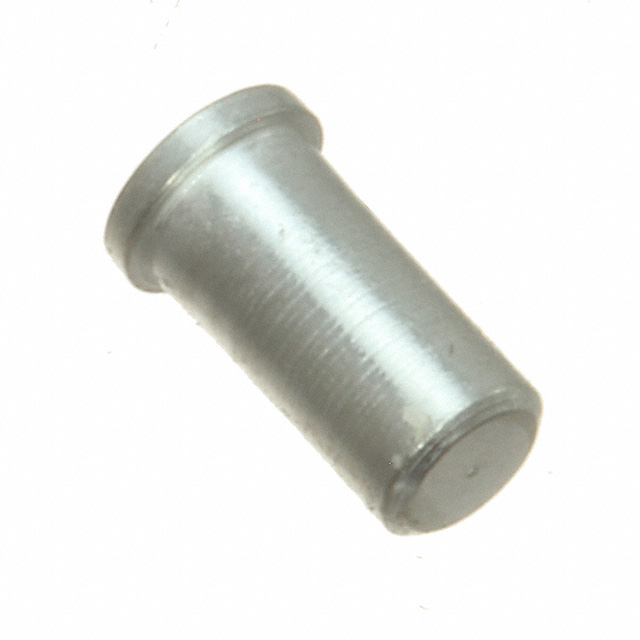

0415-0-15-80-16-80-10-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0415-0-15-80-16-80-10-0

Accepts Pin Diameter [Max]	0.86 mm
Accepts Pin Diameter [Max]	0.034 "
Accepts Pin Diameter [Min]	0.56 mm
Accepts Pin Diameter [Min]	0.022 "
Accepts Square Pin Size [diameter]	0.64 mm
Accepts Square Pin Size [diameter]	0.025 in
Contact Finish	Tin
Contact Finish Thickness	200 Áin
Contact Finish Thickness	5.08 Ám
Contact Material	Beryllium Copper
Flange Diameter [diameter]	0.078 in
Flange Diameter [diameter]	1.98 mm
Length - Overall	4.83 mm
Length - Overall	0.19 in
Mounting Hole Diameter [diameter]	1.6 mm
Mounting Hole Diameter [diameter]	0.063 in
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	0.051 in
Pin Hole Diameter [diameter]	1.3 mm
Socket Depth	4.19 mm
Socket Depth	0.165 in
Tail Type	No Tail
Termination	Solder

0415-0 Series

Part	Accepts Square Pin Size [diameter]	Accepts Square Pin Size [diameter]	Contact Material	Length - Overall	Length - Overall	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Tail Type	Socket Depth	Socket Depth	Termination	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Flange Diameter [diameter]	Flange Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]
Mill-Max Manufacturing Corp. 0415-0-15-01-16-14-10-0	0.64 mm	0.025 in	Beryllium Copper	4.83 mm	0.19 in	0.86 mm	0.034 "	0.56 mm	0.022 "	1.6 mm	0.063 in	No Tail	4.19 mm	0.165 in	Solder	0.051 in	1.3 mm	10 Áin	0.25 Ám	Gold	0.078 in	1.98 mm	-55 °C	125 °C
Mill-Max Manufacturing Corp. 0415-0-15-15-16-14-10-0	0.64 mm	0.025 in	Beryllium Copper	4.83 mm	0.19 in	0.86 mm	0.034 "	0.56 mm	0.022 "	1.6 mm	0.063 in	No Tail	4.19 mm	0.165 in	Solder	0.051 in	1.3 mm	10 Áin	0.25 Ám	Gold	0.078 in	1.98 mm	-55 °C	125 °C
Mill-Max Manufacturing Corp. 0415-0-15-01-16-01-10-0	0.64 mm	0.025 in	Beryllium Copper	4.83 mm	0.19 in	0.86 mm	0.034 "	0.56 mm	0.022 "	1.6 mm	0.063 in	No Tail	4.19 mm	0.165 in	Solder	0.051 in	1.3 mm	200 Áin	5.08 Ám	Tin-Lead	0.078 in	1.98 mm	-55 °C	125 °C
Mill-Max Manufacturing Corp. 0415-0-15-80-16-80-10-0	0.64 mm	0.025 in	Beryllium Copper	4.83 mm	0.19 in	0.86 mm	0.034 "	0.56 mm	0.022 "	1.6 mm	0.063 in	No Tail	4.19 mm	0.165 in	Solder	0.051 in	1.3 mm	200 Áin	5.08 Ám	Tin	0.078 in	1.98 mm	-55 °C	125 °C
Mill-Max Manufacturing Corp. 0415-0-15-15-16-27-10-0	0.64 mm	0.025 in	Beryllium Copper	4.83 mm	0.19 in	0.86 mm	0.034 "	0.56 mm	0.022 "	1.6 mm	0.063 in	No Tail	4.19 mm	0.165 in	Solder	0.051 in	1.3 mm	30 Áin	0.76 Ám	Gold	0.078 in	1.98 mm	-55 °C	125 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.44
		10	$ 0.38
		25	$ 0.35
		50	$ 0.33
		100	$ 0.32
		250	$ 0.29
		500	$ 0.28
		1000	$ 0.24

Description

General part information

0415-0 Series

Pin Receptacle Connector 0.022" ~ 0.034" (0.56mm ~ 0.86mm) No Tail Solder
