A221Y10V22

Active

Nicomatic

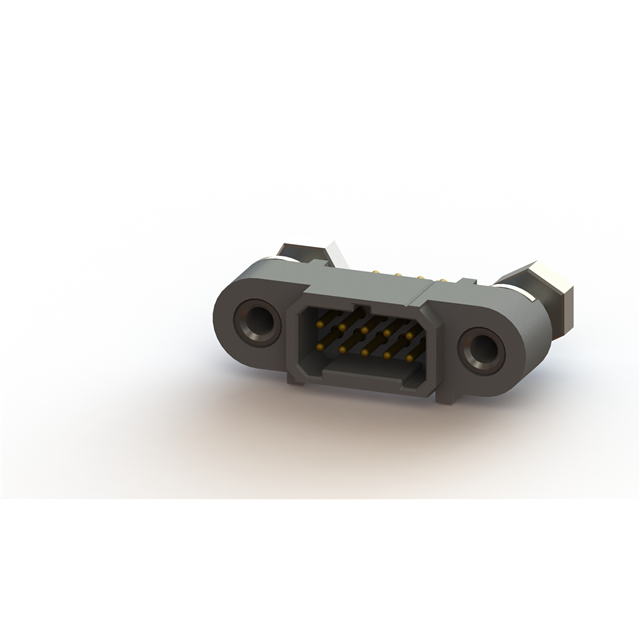

MALE 10POS STRAIGHT TRGH 1.27MM

Search across all available documentation for this part.

Active

Nicomatic

MALE 10POS STRAIGHT TRGH 1.27MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A221Y10V22	A221Y10V Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	0.15 µm	0.15 µm
Contact Finish Thickness - Mating	5.9 µin	5.9 µin
Contact Finish Thickness - Post	0.15 µm	0.15 µm
Contact Finish Thickness - Post	5.9 µin	5.9 µin
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Circular	Circular
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	2.5 A	2.5 A
Fastening Type	-	Push-Pull
Features	Mounting Flange, Mating Flange, Mounting Hardware	Mounting Flange, Mating Flange, Mounting Hardware
Insulation Color	Black	Black
Insulation Height	0.161 in	0.161 in
Insulation Height	4.1 mm	4.1 mm
Insulation Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	10	10
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch - Mating	0.039 in	0.039 in
Pitch - Mating	1 mm	1 mm
Row Spacing - Mating	0.039 "	0.039 "
Row Spacing - Mating	1 mm	1 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder
Voltage Rating	600 VAC	600 VAC

MALE 10POS STRAIGHT TRGH 1.27MM

Part	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Contact Finish - Post	Connector Type	Contact Material	Mounting Type	Style	Material Flammability Rating	Number of Positions Loaded	Number of Rows	Voltage Rating	Insulation Height	Insulation Height	Contact Finish - Mating	Row Spacing - Mating	Row Spacing - Mating	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Features	Contact Type	Contact Shape	Current Rating (Amps)	Termination	Pitch - Mating	Pitch - Mating	Insulation Color	Fastening Type
Nicomatic A221Y10V22	10	0.15 µm	5.9 µin	-65 ░C	200 °C	Shrouded - 4 Wall	Gold	Header	Copper Alloy	Through Hole	Board to Board, Cable	UL94 V-0	All	2	600 VAC	0.161 in	4.1 mm	Gold	0.039 "	1 mm	Liquid Crystal Polymer (LCP)	0.15 µm	5.9 µin	Mating Flange, Mounting Flange, Mounting Hardware	Male Pin	Circular	2.5 A	Solder	0.039 in	1 mm	Black
Nicomatic A221Y10VXX	10	0.15 µm	5.9 µin	-65 ░C	200 °C	Shrouded - 4 Wall	Gold	Header	Copper Alloy	Through Hole	Board to Board, Cable	UL94 V-0	All	2	600 VAC	0.161 in	4.1 mm	Gold	0.039 "	1 mm	Liquid Crystal Polymer (LCP)	0.15 µm	5.9 µin	Mating Flange	Male Pin	Circular	2.5 A	Solder	0.039 in	1 mm	Black	Push-Pull

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 10 position 0.039" (1.00mm)
