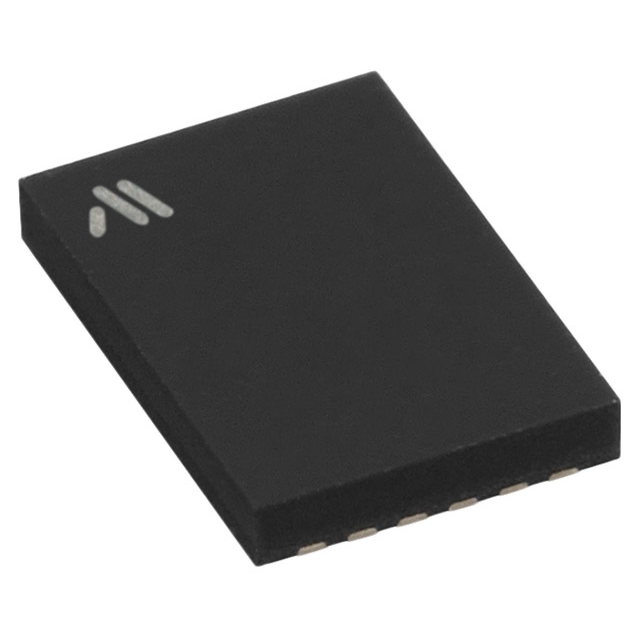

MM8118G01RFE

Active

Mitsumi Electric Company Ltd

FUEL GAUGE PLP-12A

Search across all available documentation for this part.

Active

Mitsumi Electric Company Ltd

FUEL GAUGE PLP-12A

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MM8118G01RFE	MM8118 Series

Battery Chemistry	Lithium Ion/Polymer	Lithium Ion/Polymer
Fault Protection	Over Voltage, Over Current, Over Temperature	Over Voltage, Over Current, Over Temperature
Function	Fuel Gauge	Fuel Gauge
Interface	I2C	I2C
Mounting Type	Surface Mount	Surface Mount
Number of Cells	1	1
Operating Temperature [Max]	85 C	85 C
Operating Temperature [Min]	-20 °C	-20 °C
Package / Case	12-UFDFN Exposed Pad	15-UFBGA, WLCSP, 12-UFDFN Exposed Pad
Supplier Device Package	PLP-12A	15-WLCSP-A (2.61x1.46), PLP-12A

FUEL GAUGE FOR WEARABLE WLCSP-15

Part	Mounting Type	Package / Case	Supplier Device Package	Fault Protection	Interface	Operating Temperature [Min]	Operating Temperature [Max]	Number of Cells	Battery Chemistry	Function
Mitsumi Electric Company Ltd MM8118W02LFE	Surface Mount	15-UFBGA, WLCSP	15-WLCSP-A (2.61x1.46)	Over Current, Over Temperature, Over Voltage	I2C	-20 °C	85 C	1	Lithium Ion/Polymer	Fuel Gauge
Mitsumi Electric Company Ltd MM8118G01RFE	Surface Mount	12-UFDFN Exposed Pad	PLP-12A	Over Current, Over Temperature, Over Voltage	I2C	-20 °C	85 C	1	Lithium Ion/Polymer	Fuel Gauge

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2000	$ 2.25

General part information

Battery Fuel Gauge IC Lithium Ion/Polymer PLP-12A
