1126 24"X36YD

Active

TAPE COPPER FOIL NATU 24"X36YD

Search across all available documentation for this part.

Active

TAPE COPPER FOIL NATU 24"X36YD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

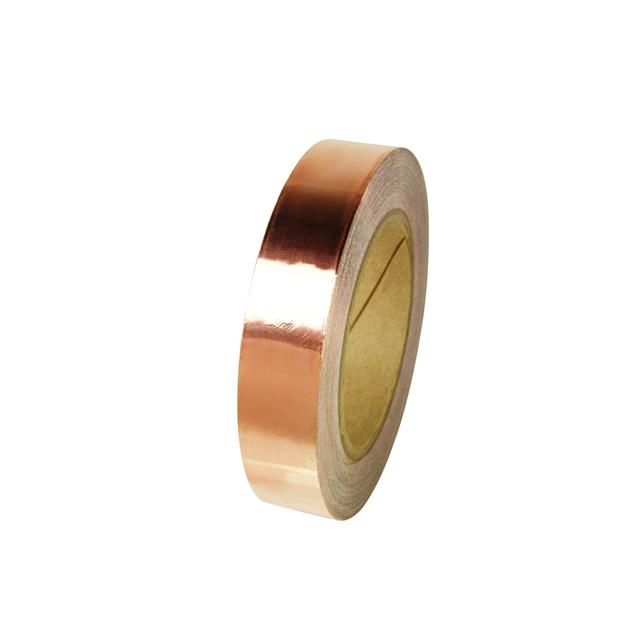

Copper Foil Tape Acrylic Adhesive Natural 24.00" (609.60mm) X 108' (32.9m) 36 yds

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	1126 24"X36YD	1126 Series

Adhesive	Acrylic	Acrylic
Backing, Carrier	Copper Foil	Copper Foil
Color	Natural	Natural
Length	36 yd	36 yd
Length	32.9 m	32.9 m
Length	108 ft	108 ft
Shelf Life	60 Months	60 Months
Shelf Life Start	Date of Manufacture	Date of Delivery, Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C	27 - 80 °F
Storage/Refrigeration Temperature [Min]	10 °C	10 °C
Tape Type	Copper Foil	Copper Foil
Temperature Range [Max]	130 °C	130 °C
Temperature Range [Min]	-40 °F	-40 °F
Thickness - Backing, Carrier	3.5 mils	3.5 mils
Thickness - Backing, Carrier	0.089 mm	0.089 mm
Thickness - Backing, Carrier	0.0035 in	0.0035 in
Usage	EMI Shielding	EMI Shielding
Width	-	0.375 in
Width	-	9.65 mm
Width	-	0.38 in
Width	-	2 "
Width	-	50.8 mm
Width [x]	609.6 mm	76.2 - 609.6 mm
Width [x]	24 in	3 - 24 in

TAPE COPPER FOIL NATU 3/8"X36YD

Part	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Usage	Temperature Range [Min]	Temperature Range [Max]	Backing, Carrier	Shelf Life Start	Shelf Life	Length	Length	Length	Width	Width	Width	Color	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Adhesive	Tape Type	Width [y]	Width [y]	Width [x]	Width [x]
3M 1126-3/8X36	27 °C, 80 °F	10 °C	EMI Shielding	-40 °F	130 °C	Copper Foil	Date of Delivery	60 Months	36 yd	32.9 m	108 ft	0.375 in	9.65 mm	0.38 in	Natural	3.5 mils	0.089 mm	0.0035 in	Acrylic	Copper Foil
3M 1126 2"X36YD	27 °C, 80 °F	10 °C	EMI Shielding	-40 °F	130 °C	Copper Foil	Date of Manufacture	60 Months	36 yd	32.9 m	108 ft				Natural	3.5 mils	0.089 mm	0.0035 in	Acrylic	Copper Foil	2 "	50.8 mm
3M 1126 24"X36YD	27 °C, 80 °F	10 °C	EMI Shielding	-40 °F	130 °C	Copper Foil	Date of Manufacture	60 Months	36 yd	32.9 m	108 ft				Natural	3.5 mils	0.089 mm	0.0035 in	Acrylic	Copper Foil			609.6 mm	24 in
3M 1126	27 °C, 80 °F	10 °C	EMI Shielding	-40 °F	130 °C	Copper Foil	Date of Manufacture	60 Months	36 yd	32.9 m	108 ft				Natural	3.5 mils	0.089 mm	0.0035 in	Acrylic	Copper Foil			584.2 mm	23 in
3M 1126 3"X36YD	27 °C, 80 °F	10 °C	EMI Shielding	-40 °F	130 °C	Copper Foil	Date of Manufacture	60 Months	36 yd	32.9 m	108 ft				Natural	3.5 mils	0.089 mm	0.0035 in	Acrylic	Copper Foil			76.2 mm	3 in
3M 1126 23"X36YD	27 °C, 80 °F	10 °C	EMI Shielding	-40 °F	130 °C	Copper Foil	Date of Manufacture	60 Months	36 yd	32.9 m	108 ft				Natural	3.5 mils	0.089 mm	0.0035 in	Acrylic	Copper Foil			584.2 mm	23 in
