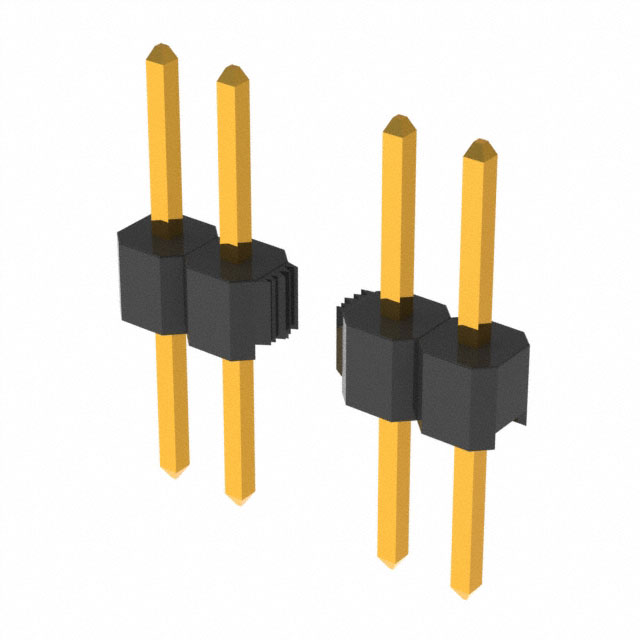

NREC008SABN-RC

Unknown

Sullins Connector Solutions

BOARD CONNECTOR, 8 CONTACT(S), 1 ROW(S), MALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL

Search across all available documentation for this part.

Unknown

Sullins Connector Solutions

BOARD CONNECTOR, 8 CONTACT(S), 1 ROW(S), MALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL

Technical Specifications

Parameters and characteristics for this part

Specification	NREC008SABN-RC

Connector Type	Breakaway, Header
Contact Finish - Post	Tin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post	0.23 in
Contact Length - Post	5.84 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.098 in
Insulation Height [z]	2.5 mm
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Overall Contact Length	0.558 in
Overall Contact Length	14.18 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

Part	Insulation Color	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Number of Positions Loaded	Termination	Number of Positions	Insulation Material	Pitch - Mating	Pitch - Mating	Insulation Height [z]	Insulation Height [z]	Fastening Type	Material Flammability Rating	Overall Contact Length	Overall Contact Length	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Contact Length - Mating [x]	Contact Length - Mating	Connector Type	Number of Rows	Style	Mounting Type	Shrouding	Contact Finish - Post	Contact Material
Sullins Connector Solutions NREC008SABN-RC	Black	Male Pin	-40 °C	105 ░C	Square	All	Solder	8	Nylon 6T Polyamide (PA6T)	0.1 in	2.54 mm	0.098 in	2.5 mm	Push-Pull	UL94 V-0	0.558 in	14.18 mm	3 A	0.23 in	5.84 mm	0.23 in	5.84 mm	Breakaway Header	1	Board to Board Cable	Through Hole	Unshrouded	Tin	Brass
Sullins Connector Solutions NREC008SABC-M30RC	Black	Male Pin	-40 °C	105 ░C	Square	All	Solder	8	Nylon 6T Polyamide (PA6T)	0.1 in	2.54 mm	0.098 in	2.5 mm	Push-Pull	UL94 V-0			3 A			0.23 in	5.84 mm	Header	1	Board to Board Cable	Surface Mount	Unshrouded	Tin	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Header Through Hole 8 position 0.100" (2.54mm)
