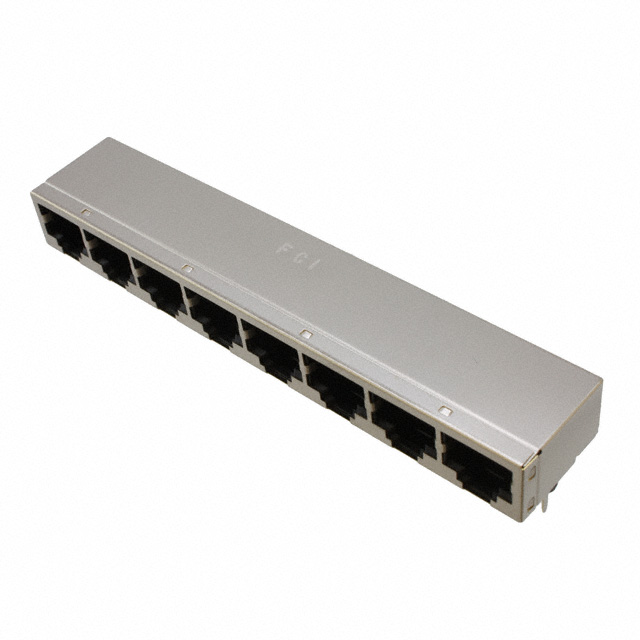

10118064-5001310LF

Obsolete

Amphenol ICC (FCI)

CONN MOD JACK 8P8C R/A SHIELDED

Search across all available documentation for this part.

Obsolete

Amphenol ICC (FCI)

CONN MOD JACK 8P8C R/A SHIELDED

Technical Specifications

Parameters and characteristics for this part

Specification	10118064-5001310LF

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Housing Material	Thermoplastic
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	8
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	90 °
Ratings	Cat3
Shielding	Shielded
Tab Direction	Down
Termination	Solder

Part	Ratings	Shielding	Orientation	Number of Positions/Contacts	Number of Ports	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Contact Finish Thickness	LED Color	Contact Finish	Contact Material	Mounting Type	Connector Type	Tab Direction	Housing Material	Number of Rows
Amphenol ICC (FCI) 10118064-5001310LF	Cat3	Shielded	90 °	8p8c (RJ45 Ethernet)	8	85 °C	-40 °C	Solder	Flash	Does Not Contain LED	Gold	Copper Alloy	Through Hole	Jack	Down	Thermoplastic	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded Cat3

Technical documentation and resources

No documents available
