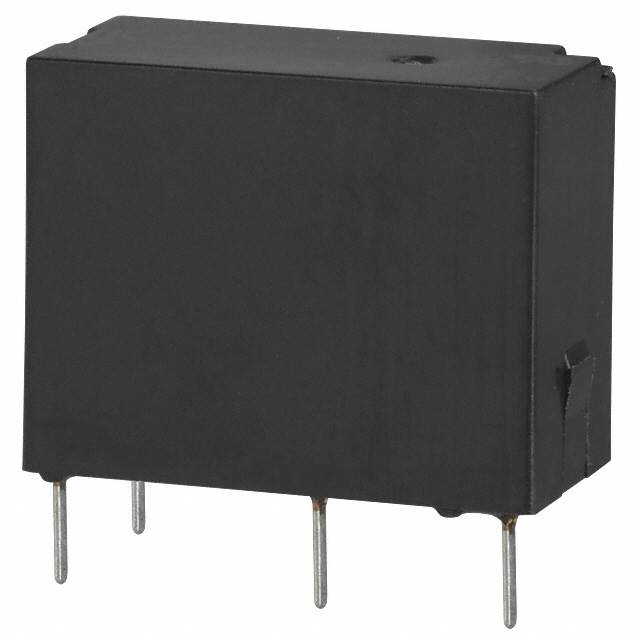

ALDP124
ActivePanasonic Electric Works
RELAY GEN PURPOSE SPST 5A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsHow to Read Date Codes
ALDP124
ActivePanasonic Electric Works
RELAY GEN PURPOSE SPST 5A 24V
Deep-Dive with AI
DocumentsHow to Read Date Codes
Technical Specifications
Parameters and characteristics for this part
| Specification | ALDP124 |
|---|---|
| Approval Agency | cURuus, CQC, VDE |
| Coil Current | 8.3 mA |
| Coil Insulation | Class E |
| Coil Resistance | 2.88 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 5 A |
| Load - Max Switching | 1385 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 10 ms |
| Switching Voltage [Max] | 277 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 2.04 | |
| 10 | $ 1.91 | |||
| 25 | $ 1.70 | |||
| 50 | $ 1.61 | |||
| 100 | $ 1.53 | |||
| 300 | $ 1.36 | |||
| 500 | $ 1.27 | |||
| 1000 | $ 1.19 | |||
| 5000 | $ 1.15 | |||
Description
General part information
ALDP12 Series
General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
