SFV18R-2STE1HLF

Active

Amphenol ICC (FCI)

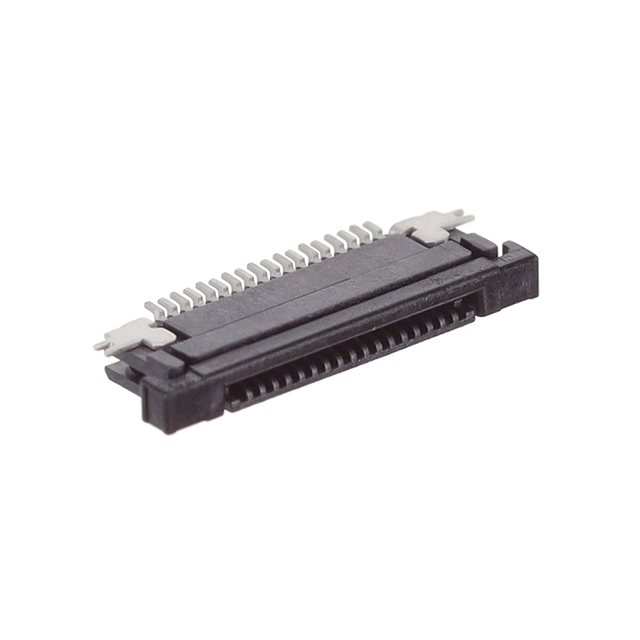

CONN FFC FPC TOP 18POS 0.5MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSFV31R-2STBE1HLF SFV21R-1STE1HLF +2

SFV18R-2STE1HLF

Active

Amphenol ICC (FCI)

CONN FFC FPC TOP 18POS 0.5MM R/A

Deep-Dive with AI

DocumentsSFV31R-2STBE1HLF SFV21R-1STE1HLF +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFV18R-2STE1HLF

Actuator Color	Black
Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free
Cable End Type	Notched or Tabbed
Connector/Contact Type	Contacts, Top
Contact Finish	Tin
Contact Material	Phosphor Bronze
Current Rating (Amps)	0.5 A
Features	Zero Insertion Force (ZIF), Solder Retention
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board	1.8 mm
Height Above Board	0.071 in
Housing Color	Black
Housing Material	Glass Filled, Halogen Free, Liquid Crystal Polymer (LCP)
Locking Feature	Flip Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	18
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder
Voltage Rating	50 V

SFV18R Series

Part	Flat Flex Type	Voltage Rating	Number of Positions	Contact Finish	Locking Feature	Cable End Type	Housing Material	Housing Color	Contact Material	Pitch [x]	Pitch [x]	Mounting Type	Mating Cycles	Material Flammability Rating	Height Above Board	Height Above Board	Features	Actuator Material	Termination	Current Rating (Amps)	Connector/Contact Type	Actuator Color	Operating Temperature [Max]	Operating Temperature [Min]	FFC, FCB Thickness [z]	Contact Finish Thickness	FFC, FCB Thickness
Amphenol ICC (FCI) SFV18R-1STE9HLF	FFC FPC	50 V	18	Tin	Slide Lock	Straight Tapered	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	Black	Phosphor Bronze	0.5 mm	0.02 in	Surface Mount Right Angle	20	UL94 V-0	1.8 mm	0.071 in	Solder Retention Zero Insertion Force (ZIF)	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Solder	0.5 A	Contacts Bottom	Black	105 ░C	-55 °C	0.3 mm 0.33 mm
Amphenol ICC (FCI) SFV18R-1STBE9HLF	FFC FPC	50 V	18	Gold	Slide Lock	Straight Tapered	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	Black	Phosphor Bronze	0.5 mm	0.02 in	Surface Mount Right Angle	20	UL94 V-0	1.8 mm	0.071 in	Solder Retention Zero Insertion Force (ZIF)	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Solder	0.5 A	Contacts Bottom	Black	105 ░C	-55 °C	0.3 mm 0.33 mm	Flash
Amphenol ICC (FCI) SFV18R-2STE1LF	FFC FPC	50 V	18	Tin	Slide Lock	Straight Tapered	Polyamide (PA) Nylon Glass Filled	Black	Phosphor Bronze	0.5 mm	0.02 in	Surface Mount Right Angle		UL94 V-0	1.8 mm	0.071 in	Solder Retention Zero Insertion Force (ZIF)	Polyphenylene Sulfide (PPS) Glass Filled	Solder	0.5 A	Contacts Top	Brown	105 ░C	-55 °C	0.3 mm 0.33 mm
Amphenol ICC (FCI) SFV18R-2STAE1HLF	FFC FPC	50 V	18	Gold	Slide Lock	Straight Tapered	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	Black	Phosphor Bronze	0.5 mm	0.02 in	Surface Mount Right Angle	20	UL94 V-0	1.8 mm	0.071 in	Solder Retention Zero Insertion Force (ZIF)	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Solder	0.5 A	Contacts Top	Black	105 ░C	-55 °C	0.3 mm 0.33 mm
Amphenol ICC (FCI) SFV18R-2STE9HLF	FFC FPC	50 V	18	Tin	Slide Lock	Straight Tapered	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	Black	Phosphor Bronze	0.5 mm	0.02 in	Surface Mount Right Angle	20	UL94 V-0	1.8 mm	0.071 in	Solder Retention Zero Insertion Force (ZIF)	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Solder	0.5 A	Contacts Top	Black	105 ░C	-55 °C	0.3 mm 0.33 mm
Amphenol ICC (FCI) SFV18R-2STBE1HLF	FFC FPC	50 V	18	Gold	Slide Lock	Tapered	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	Black	Phosphor Bronze	0.5 mm	0.02 in	Surface Mount Right Angle	20	UL94 V-0	1.8 mm	0.071 in	Solder Retention Zero Insertion Force (ZIF)	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Solder	0.5 A	Contacts Top	Brown	105 ░C	-55 °C	0.3 mm 0.33 mm
Amphenol ICC (FCI) SFV18R-2STE1HLF	FFC FPC	50 V	18	Tin	Flip Lock	Notched or Tabbed	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	Black	Phosphor Bronze	0.5 mm	0.02 in	Surface Mount Right Angle	20	UL94 V-0	1.8 mm	0.071 in	Solder Retention Zero Insertion Force (ZIF)	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Solder	0.5 A	Contacts Top	Black	105 ░C	-55 °C			0.3 mm
Amphenol ICC (FCI) SFV18R-1STAE1HLF	FFC FPC	50 V	18	Gold	Slide Lock	Straight Tapered	Polyamide (PA) Nylon Glass Filled Halogen Free	Black	Phosphor Bronze	0.5 mm	0.02 in	Surface Mount Right Angle	20	UL94 V-0	1.8 mm	0.071 in	Solder Retention Zero Insertion Force (ZIF)	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Solder	0.5 A	Contacts Bottom	Black	105 ░C	-55 °C			0.33 mm
Amphenol ICC (FCI) SFV18R-2STE1	FFC FPC	50 V	18	Tin Alloy	Slide Lock	Straight Tapered	Polyamide (PA) Nylon Glass Filled	Black	Phosphor Bronze	0.5 mm	0.02 in	Surface Mount Right Angle	20	UL94 V-0	1.8 mm	0.071 in	Solder Retention Zero Insertion Force (ZIF)	Polyphenylene Sulfide (PPS) Glass Filled	Solder	0.5 A	Contacts Top	Brown	105 ░C	-55 °C	0.3 mm 0.33 mm
Amphenol ICC (FCI) SFV18R-3STE1HLF	FPC	50 V	18	Tin	Slide Lock	Tapered	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	Black	Phosphor Bronze	0.5 mm	0.02 in	Surface Mount Right Angle	20	UL94 V-0	1.8 mm	0.071 in		Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Solder	0.5 A	Contacts Bottom	Black	105 ░C	-55 °C			0.33 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.66
		10	$ 0.50
		25	$ 0.45
		50	$ 0.42
		100	$ 0.38
		250	$ 0.35
		500	$ 0.32
		1000	$ 0.30
	Digi-Reel®	1	$ 0.66
		10	$ 0.50
		25	$ 0.45
		50	$ 0.42
		100	$ 0.38
		250	$ 0.35
		500	$ 0.32
		1000	$ 0.30
	Tape & Reel (TR)	3000	$ 0.27
		6000	$ 0.25
		9000	$ 0.24
		15000	$ 0.23
		21000	$ 0.22
		30000	$ 0.21

Description

General part information

SFV18R Series

18 Position FFC, FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle

SFV18R-2STE1HLF
