4-794628-2
ActiveTE Connectivity AMP Connectors

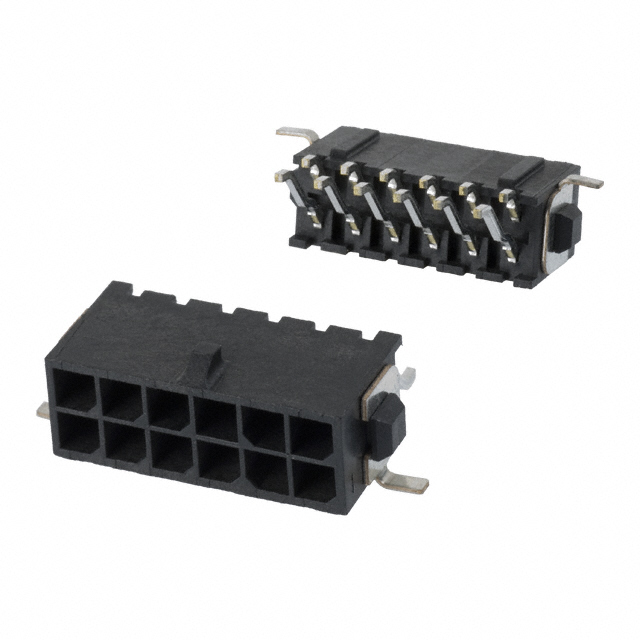

CONN HEADER SMD R/A 12POS 3MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
4-794628-2
ActiveTE Connectivity AMP Connectors
CONN HEADER SMD R/A 12POS 3MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 4-794628-2 | 794628 Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin | Tin, Tin-Lead |
| Contact Finish Thickness - Mating | 15 µin | 15 µin |
| Contact Finish Thickness - Mating | 0.38 µm | 0.38 µm |
| Contact Finish Thickness - Post | 2.54 µm | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin | 100 µin |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Locking Ramp | Locking Ramp |
| Features | Solder Retention | Solder Retention |
| Insulation Color | Black | Black |
| Insulation Height | 7.37 mm | 7.37 mm |
| Insulation Height | 0.29 in | 0.29 in |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Number of Positions | 12 | 4 - 24 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch - Mating | 0.118 in | 0.118 in |
| Pitch - Mating | 3 mm | 3 mm |
| Row Spacing - Mating | 3 mm | 3 mm |
| Row Spacing - Mating | 0.118 in | 0.118 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
| Voltage Rating | 250 VDC | 250 VDC |
794628 Series
CONN HEADER SMD R/A 24POS 3MM
| Part | Voltage Rating | Contact Material | Pitch - Mating | Pitch - Mating | Number of Positions | Insulation Material | Shrouding | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Post | Contact Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Style | Applications | Number of Rows | Fastening Type | Current Rating (Amps) | Insulation Color | Contact Shape | Material Flammability Rating | Mounting Type | Insulation Height | Insulation Height | Contact Finish - Mating | Connector Type | Number of Positions Loaded | Features | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Row Spacing - Mating | Row Spacing - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 5-794628-4 | 250 VDC | Brass | 0.118 in | 3 mm | 24 | Nylon, Polyamide (PA) | Shrouded - 4 Wall | Solder | -40 °C | 105 ░C | Tin | Male Pin | 2.54 µm | 100 µin | Board to Cable/Wire | General Purpose | 2 | Locking Ramp | Varies by Wire Gauge | Black | Square | UL94 V-0 | Surface Mount, Right Angle | 7.37 mm | 0.29 in | Gold | Header | All | Solder Retention | 15 µin | 0.38 µm | 3 mm | 0.118 in |
TE Connectivity AMP Connectors 3-794628-8 | 250 VDC | Brass | 0.118 in | 3 mm | 8 | Nylon, Polyamide (PA) | Shrouded - 4 Wall | Solder | -40 °C | 105 ░C | Tin | Male Pin | 2.54 µm | 100 µin | Board to Cable/Wire | General Purpose | 2 | Locking Ramp | Varies by Wire Gauge | Black | Square | UL94 V-0 | Surface Mount, Right Angle | 7.37 mm | 0.29 in | Gold | Header | All | Solder Retention | 15 µin | 0.38 µm | 3 mm | 0.118 in |
TE Connectivity AMP Connectors 3-794628-6 | 250 VDC | Brass | 0.118 in | 3 mm | 6 | Nylon, Polyamide (PA) | Shrouded - 4 Wall | Solder | -40 °C | 105 ░C | Tin | Male Pin | 2.54 µm | 100 µin | Board to Cable/Wire | General Purpose | 2 | Locking Ramp | Varies by Wire Gauge | Black | Square | UL94 V-0 | Surface Mount, Right Angle | 7.37 mm | 0.29 in | Gold | Header | All | Solder Retention | 15 µin | 0.38 µm | 3 mm | 0.118 in |
TE Connectivity AMP Connectors 3-794628-4 | 250 VDC | Brass | 0.118 in | 3 mm | 4 | Nylon, Polyamide (PA) | Shrouded - 4 Wall | Solder | -40 °C | 105 ░C | Tin | Male Pin | 2.54 µm | 100 µin | Board to Cable/Wire | General Purpose | 2 | Locking Ramp | Varies by Wire Gauge | Black | Square | UL94 V-0 | Surface Mount, Right Angle | 7.37 mm | 0.29 in | Gold | Header | All | Solder Retention | 15 µin | 0.38 µm | 3 mm | 0.118 in |
TE Connectivity AMP Connectors 1-794628-2 | 250 VDC | Brass | 0.118 in | 3 mm | 12 | Nylon, Polyamide (PA) | Shrouded - 4 Wall | Solder | -40 °C | 105 ░C | Tin-Lead | Male Pin | 2.54 µm | 100 µin | Board to Cable/Wire | General Purpose | 2 | Locking Ramp | Varies by Wire Gauge | Black | Square | UL94 V-0 | Surface Mount, Right Angle | 7.37 mm | 0.29 in | Gold | Header | All | Solder Retention | 15 µin | 0.38 µm | 3 mm | 0.118 in |
TE Connectivity AMP Connectors 4-794628-2 | 250 VDC | Brass | 0.118 in | 3 mm | 12 | Nylon, Polyamide (PA) | Shrouded - 4 Wall | Solder | -40 °C | 105 ░C | Tin | Male Pin | 2.54 µm | 100 µin | Board to Cable/Wire | General Purpose | 2 | Locking Ramp | Varies by Wire Gauge | Black | Square | UL94 V-0 | Surface Mount, Right Angle | 7.37 mm | 0.29 in | Gold | Header | All | Solder Retention | 15 µin | 0.38 µm | 3 mm | 0.118 in |
TE Connectivity AMP Connectors 794628-6 | 250 VDC | Brass | 0.118 in | 3 mm | 6 | Nylon, Polyamide (PA) | Shrouded - 4 Wall | Solder | -40 °C | 105 ░C | Tin-Lead | Male Pin | 2.54 µm | 100 µin | Board to Cable/Wire | General Purpose | 2 | Locking Ramp | Varies by Wire Gauge | Black | Square | UL94 V-0 | Surface Mount, Right Angle | 7.37 mm | 0.29 in | Gold | Header | All | Solder Retention | 15 µin | 0.38 µm | 3 mm | 0.118 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 450 | $ 3.62 | |
Description
General part information
794628 Series
Connector Header Surface Mount, Right Angle 12 position 0.118" (3.00mm)
